Description
Brand - ZEN
Item Number - 3801-B-2Z ZEN
Category - Double Row Thin Section

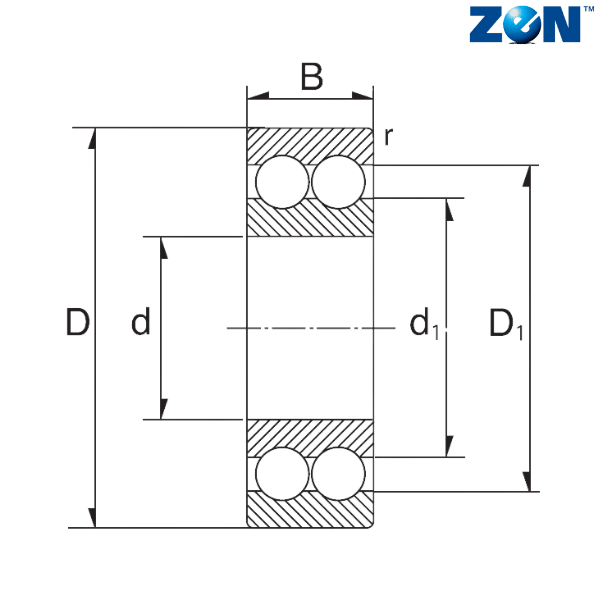

Inner Diameter (d) mm - 12
Outer Diameter (D) mm - 21
Width (B) mm - 7
Dynamic Load Rating (N) - 2190
Static Load Rating (N) - 1550
Limiting Speed - 16
Weight (kg) - 0.008
Radial Play - 0.003 - 0.018
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2Z - Metal Shields

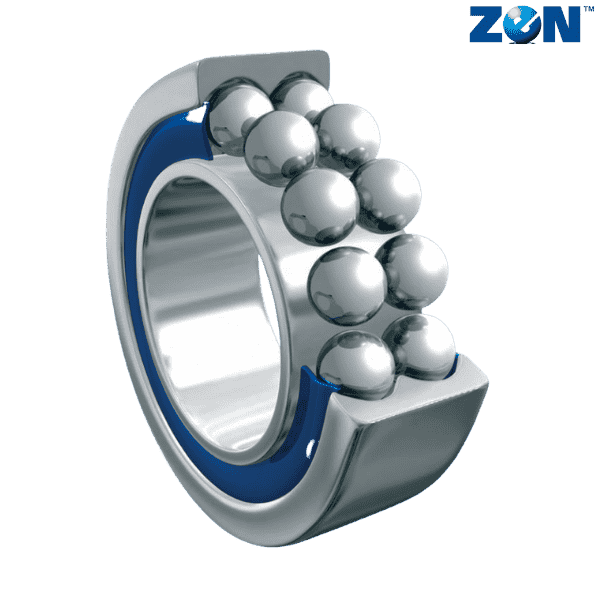

** Images are for representation purposes only
