37425/37625 (X6S-37425) TIMKEN

Brand - TIMKEN
Item Number - 37425/37625 (X6S-37425) TIMKEN
Also Known As - 37425 - 37625 (X6S-37425)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)

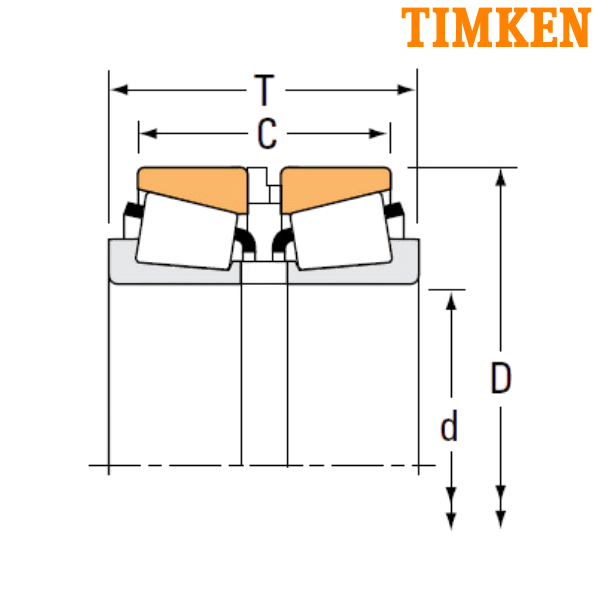

Bore Diameter (d) mm - 107.95
Bore Diameter (d) inch - 4.25
Outer Diameter (D) mm - 158.75
Outer Diameter (D) inch - 6.25
Width (T) mm - 50.002
Width (T) inch - 1.9686
Width (C) mm - 35.712
Width (C) inch - 1.406
Dynamic Radial Rating (C1) N - 238000
Dynamic Radial Rating (C1) lbf - 53400
Factor (e) - 0.61
Factor (Y1) - 1.11
Factor (Y2) - 1.66
Dynamic Radial Rating (90 million revolutions) (C90) N - 35400
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 7960
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 36700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8250
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 61600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 13900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.96

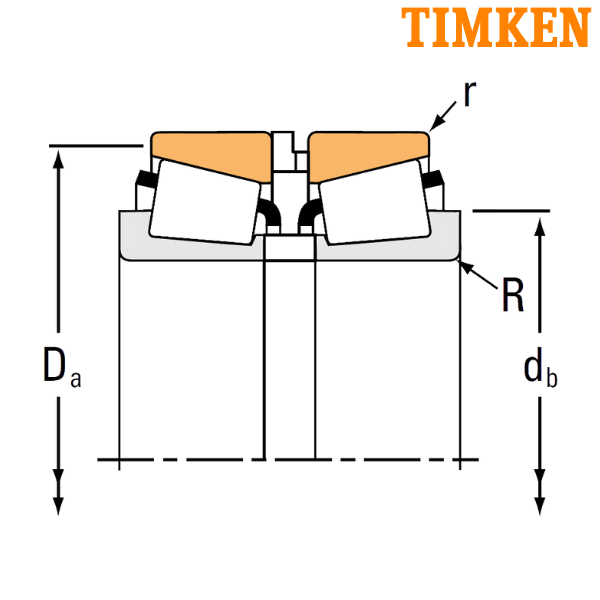

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 122
Backing Shoulder Diameter (db) inch - 4.8
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 152
Cup Frontface Backing Diameter (Da) inch - 5.98
Weight (kg) - 2.85
Weight (lbs) - 6.26
Inner Spacer - X6S-37425
Inner Part Number - 37425
Outer Part Number - 37625
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

** Images are for representation purposes only
