36990-36920 TIMKEN

Brand - TIMKEN
Item Number - 36990-36920 TIMKEN
Category - Precision Tapered Roller Bearing - TS (Tapered Single) Style

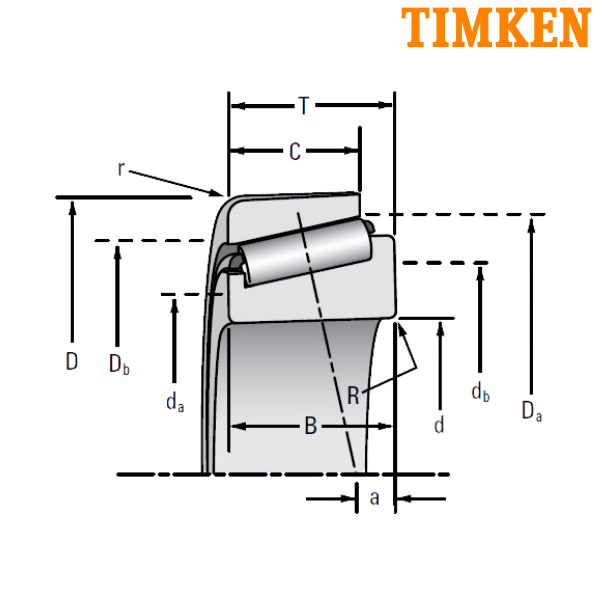

Bore Diameter (d) mm - 177.8
Bore Diameter (d) inch - 7
Outer Diameter (D) mm - 227.013
Outer Diameter (D) inch - 8.9375
Width (T) mm - 30.163
Width (T) inch - 1.1875
Static Radial Rating (C0) kN - 470
Static Radial Rating (C0) lbs - 105600
Dynamic Radial Rating (1 million revolutions) (C1) kN - 194
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 43500
Dynamic Radial Rating (90 million revolutions) (C90) kN - 50.3
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 11300
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 37.9
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 8510
Cone Width (B) mm - 30.163
Cone Width (B) inch - 1.1875
Cup Width (C) mm - 23.012
Cup Width (C) inch - 0.906
Effective Center Location (a) mm - 12.7
Effective Center Location (a) inch - 0.5
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 1.5
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 185.9
Cone Frontface Backing Diameter (da) inch - 7.32
Cone Backface Backing Diameter (db) mm - 188
Cone Backface Backing Diameter (db) inch - 7.4
Maximum Housing Fillet Radius at Cup Backface (r) mm - 1.5
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 221
Cup Frontface Backing Diameter (Da) inch - 8.7
Cup Backface Backing Diameter (Db) mm - 214.1
Cup Backface Backing Diameter (Db) inch - 8.43
Stiffness (Kr10^6) N/mm - 5.13
Stiffness (Kr10^6) lbs/in - 29.3
Stiffness (Fr) kN - 5.02
Stiffness (Fr) lbs - 1128
Stiffness (Ka10) N/mm - 0.842
Stiffness (Ka10) lbs/in - 4.81
Stiffness (Fa) kN - 3.78
Stiffness (Fa) lbs - 850
Speed Rating (RPM) - 1900
Weight (kg) - 2.88
Weight (lbs) - 6.35

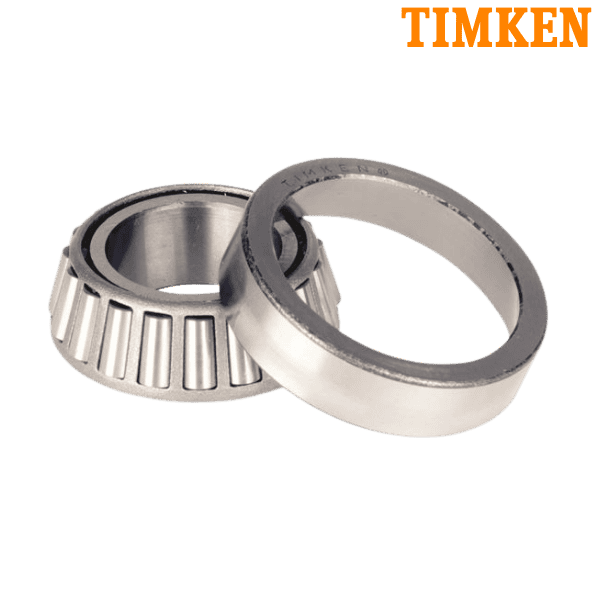

** Images are for representation purposes only
