Description
Brand - SKF
Item Number - 36990/36920 N1/VA833 SKF
Category - Gearbox, Tapered roller bearings

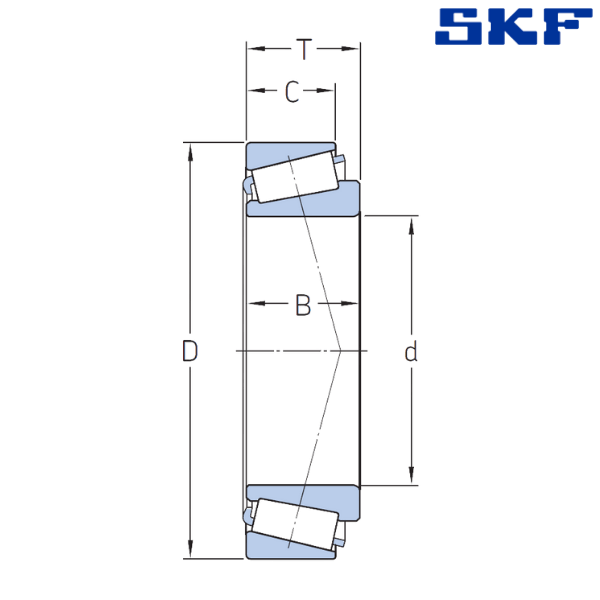

Bore Diameter (d) mm - 177.8
Outer Diameter (D) mm - 227.012
Total Width (T) mm - 30.162
Width of Inner Ring (B) mm - 30.162
Width of Outer Ring (C) mm - 23.02
Dynamic Load Rating (C) kN - 172
Static Load Rating (C0) kN - 375
Limiting Speed (r/min) - 2800
Weight (kg) - 2.87
Limiting Value (e) - 0.44
Calculation Factor (Y) - 1.35
Calculation Factor (Y0) - 0.8
Designation Prefixes and Suffixes:
N1 - One Locating Slot (Notch) in One Outer Ring Side Face
VA - This Suffix Followed by Three or Four Digit Numbers Refer to Special Executions.

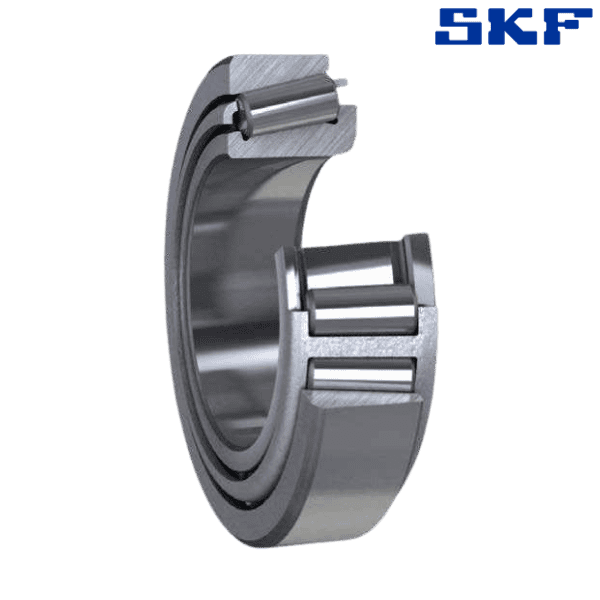

** Images are for representation purposes only
