Description
Brand - McMASTER-CARR
Item Number - 3611N11 McMASTER-CARR

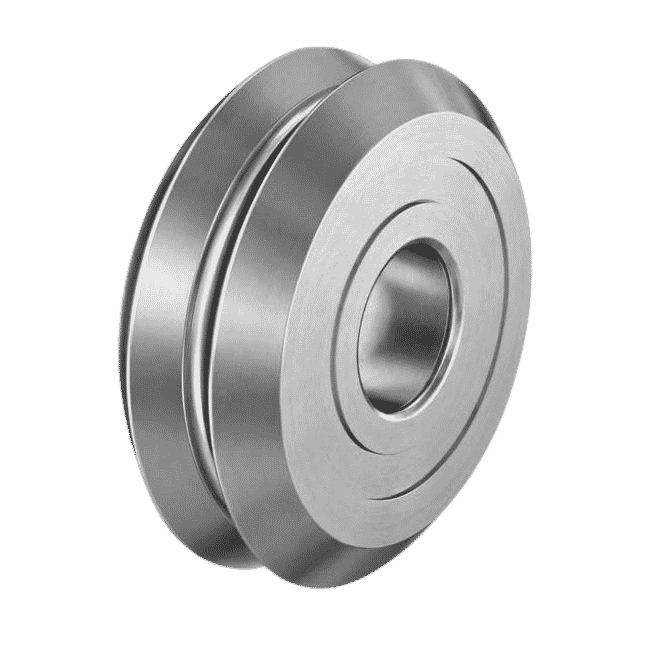

Category - Sanitary Shaft-Mount V-Groove Track Rollers (Single-Sealed and Shielded)
Imperial :

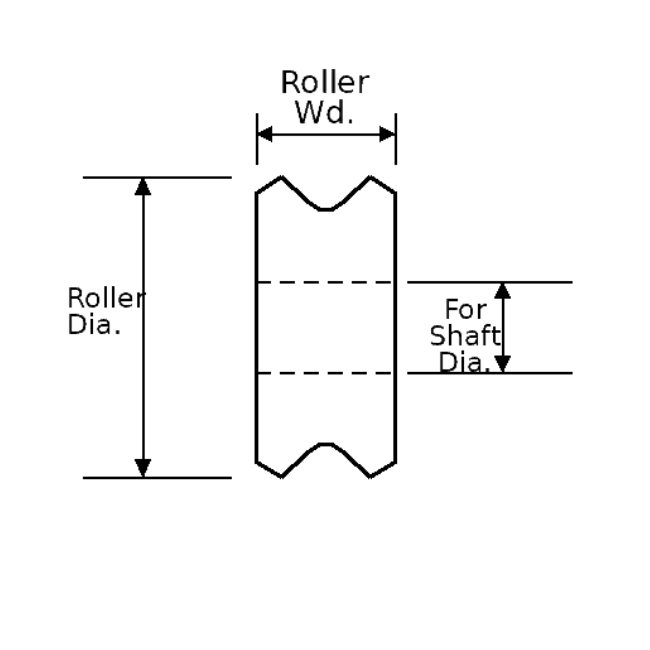

Roller Diameter (inch) - 1.1875
Roller Width (inch) - 0.4375
For Shaft Diameter (inch) - 0.375
Overall Width (inch) - 0.4375
Groove Width (inch) - 0.25
Groove Depth (inch) - 0.1875
Maximum Speed (rpm) - 3400
Radial Static Load Capacity (lbs) - 590
Radial Dynamic Load Capacity (lbs) - 590
Static Thrust Load Capacity (lbs) - 140
Maximum Temperature (°F) - 175°
Inside Bearing Type - Ball Bearing
Specifications Met - FDA Compliant 21 CFR 178.3570, NSF Registered H1
Metric :
Roller Diameter (mm) - 30.1625
Roller Width (mm) - 11.1125
For Shaft Diameter (mm) - 9.525
Overall Width (mm) - 11.1125
Groove Width (mm) - 6.35
Groove Depth (mm) - 4.7625
**Images are for representation purposes only
