Description
Brand - McMASTER-CARR
Item Number - 3402K11 McMASTER-CARR

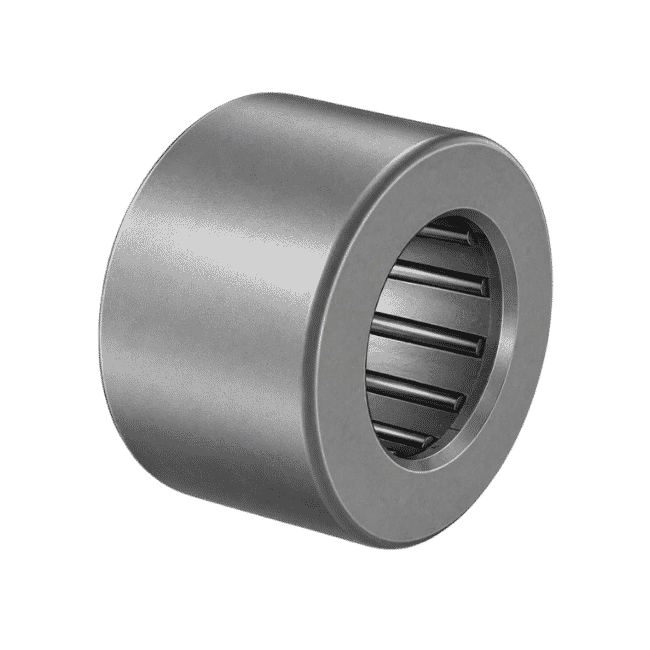

Category - High-Speed Shaft-Mount Track Rollers (Steel Flat Rollers without Seal)
Imperial :

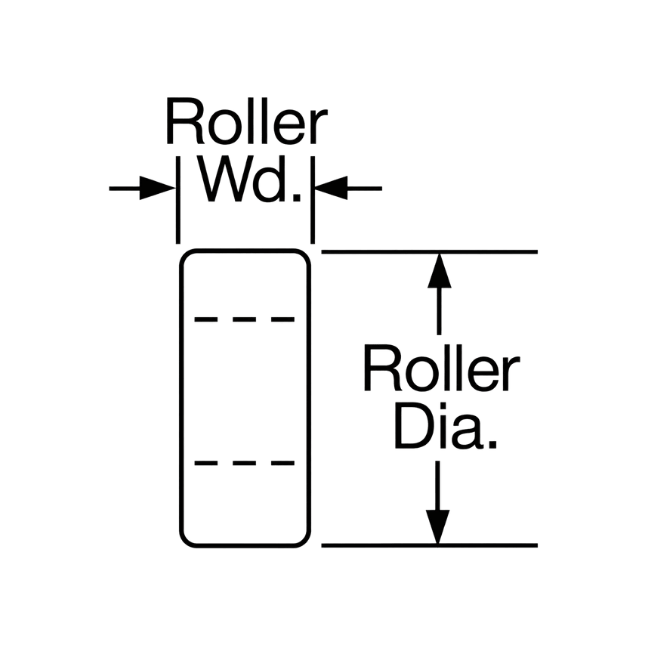

Roller Diameter (inch) - 1
Roller Width (inch) - 0.5
For Shaft Diameter (inch) - 0.5
Overall Width (inch) - 0.5
Maximum Speed (rpm) - 10000
Radial Static Load Capacity (lbs) - 2200
Radial Dynamic Load Capacity (lbs) - 1700
Maximum Temperature (°F) - 250°
Inside Bearing Type - Needle Roller Bearing
Metric :
Roller Diameter (mm) - 25.4
Roller Width (mm) - 12.7
For Shaft Diameter (mm) - 12.7
Overall Width (mm) - 12.7
**Images are for representation purposes only
