33895/33820-B TIMKEN

Brand - TIMKEN
Item Number - 33895/33820-B TIMKEN
Also Known As - 33895 - 33820-B

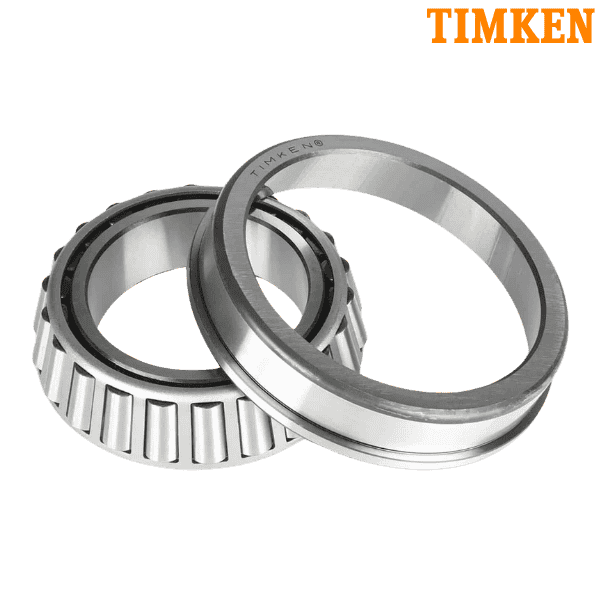

Category - Single Row Tapered Roller Bearing (TSF Type)

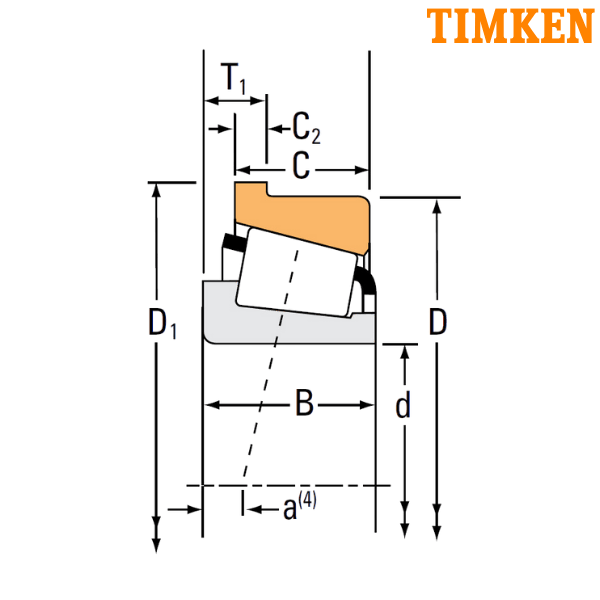

Bore Diameter (d) mm - 53.975
Bore Diameter (d) inch - 2.125
Outer Diameter (D) mm - 93.264
Outer Diameter (D) inch - 3.6718
Width (T1) mm - 10.32
Width (T1) inch - 0.4063
Dynamic Load Rating (C1) N - 130000
Dynamic Load Rating (C1) lbf - 29200
Factor (e) - 0.33
Factor (Y) - 1.82
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 33600
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 7560
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 19000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 4270
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.77
Basic Static Radial Load Rating (C0) N - 161000
Basic Static Radial Load Rating (C0) lbf - 36200
Cone Width (B) mm - 28.575
Cone Width (B) inch - 1.125
Cup Width (C) mm - 22.225
Cup Width (C) inch - 0.875
Effective Center Location (a) mm - -7.6
Effective Center Location (a) inch - -0.3
Outer Diameter of Outer Ring Flange (D1) mm - 97.937
Outer Diameter of Outer Ring Flange (D1) inch - 3.8558
Flange Width (C2) mm - 4.762
Flange Width (C2) inch - 0.1875
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06

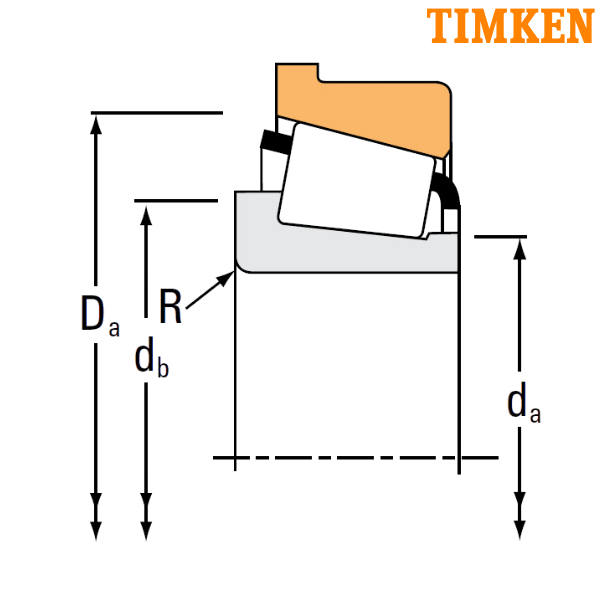

Cone Frontface Backing Diameter (da) mm - 60
Cone Frontface Backing Diameter (da) inch - 2.36
Cone Backface Backing Diameter (db) mm - 63
Cone Backface Backing Diameter (db) inch - 2.48
Cup Frontface Backing Diameter (Da) mm - 91
Cup Frontface Backing Diameter (Da) inch - 3.58
Geometry Factor (G1) - 52.5
Geometry Factor (G2) - 18.5
Geometry Factor (Cg) - 0.091
Weight (kg) - 0.79
Weight (lbs) - 1.72
Inner Part Number - 33895
Outer Part Number - 33820-B
TSF - Single-Row Bearing with a Flange on the Outer Ring
