33287/33462 (Y5S-33462) TIMKEN

Brand - TIMKEN
Item Number - 33287/33462 (Y5S-33462) TIMKEN
Also Known As - 33287 - 33462 (Y5S-33462)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 73.025
Bore Diameter (d) inch - 2.875
Outer Diameter (D) mm - 117.475
Outer Diameter (D) inch - 4.625
Width (T) mm - 60.325
Width (T) inch - 2.375
Width (B) mm - 60.324
Width (B) inch - 2.375
Dynamic Radial Rating (C1) N - 241000
Dynamic Radial Rating (C1) lbf - 54200
Factor (e) - 0.44
Factor (Y1) - 1.55
Factor (Y2) - 2.31
Dynamic Radial Rating (90 million revolutions) (C90) N - 35900
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 8060
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 26800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 6020
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 62400
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 14000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.34
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 81
Backing Shoulder Diameter (db) inch - 3.19
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 104
Cup Frontface Backing Diameter (Da) inch - 4.09
Weight (kg) - 2.47
Weight (lbs) - 5.43
Outer Spacer - Y5S-33462
Inner Part Number - 33287
Outer Part Number - 33462

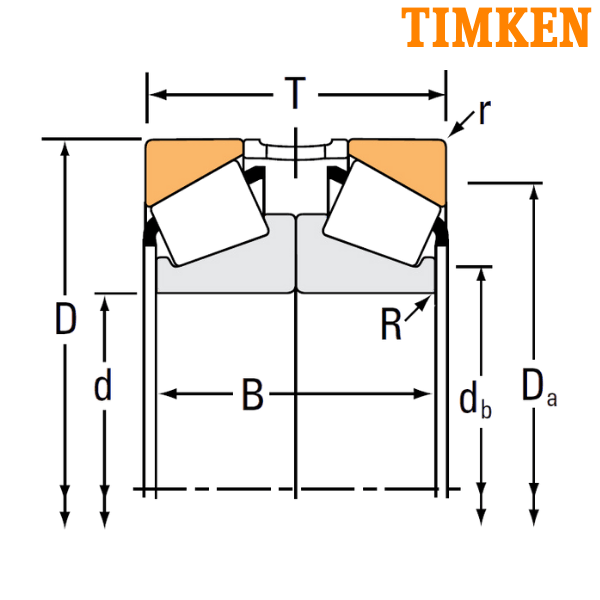

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

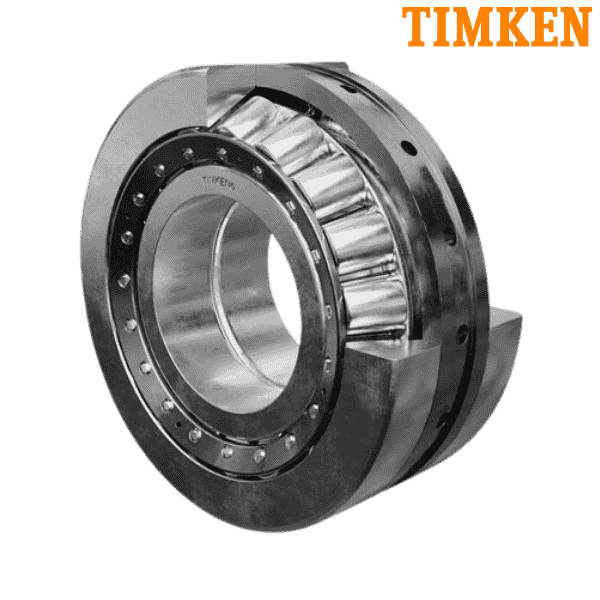

** Images are for representation purposes only
