33281/33462-B TIMKEN

Brand - TIMKEN
Item Number - 33281/33462-B TIMKEN
Also Known As - 33281 - 33462-B
Category - Single Row Tapered Roller Bearing (TSF Type)

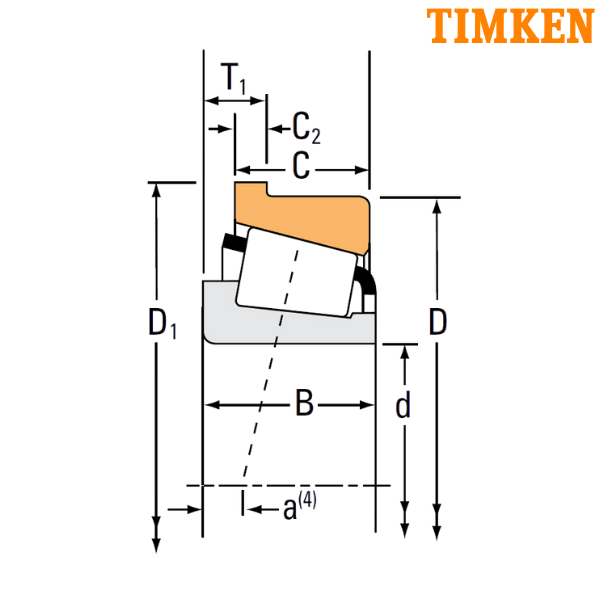

Bore Diameter (d) mm - 71.437
Bore Diameter (d) inch - 2.8125
Outer Diameter (D) mm - 117.475
Outer Diameter (D) inch - 4.625
Width (T1) mm - 11.112
Width (T1) inch - 0.4375
Dynamic Load Rating (C1) N - 138000
Dynamic Load Rating (C1) lbf - 31100
Factor (e) - 0.44
Factor (Y) - 1.38
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 35900
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 8060
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 26800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 6020
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.34
Basic Static Radial Load Rating (C0) N - 197000
Basic Static Radial Load Rating (C0) lbf - 44300
Cone Width (B) mm - 30.162
Cone Width (B) inch - 1.1875
Cup Width (C) mm - 23.812
Cup Width (C) inch - 0.9375
Effective Center Location (a) mm - -2.8
Effective Center Location (a) inch - -0.11
Outer Diameter of Outer Ring Flange (D1) mm - 122.133
Outer Diameter of Outer Ring Flange (D1) inch - 4.8084
Flange Width (C2) mm - 4.762
Flange Width (C2) inch - 0.1875

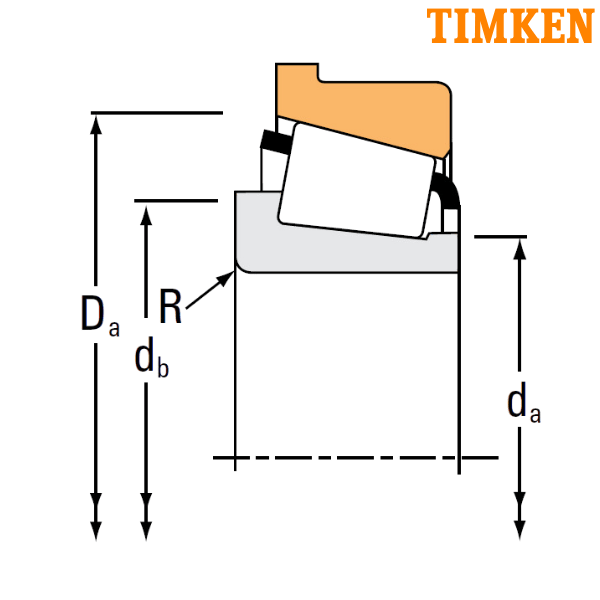

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 80
Cone Frontface Backing Diameter (da) inch - 3.15
Cone Backface Backing Diameter (db) mm - 87
Cone Backface Backing Diameter (db) inch - 3.43
Cup Frontface Backing Diameter (Da) mm - 114
Cup Frontface Backing Diameter (Da) inch - 4.49
Geometry Factor (G1) - 84.2
Geometry Factor (G2) - 25.9
Geometry Factor (Cg) - 0.1162
Weight (kg) - 1.3
Weight (lbs) - 2.86
Inner Part Number - 33281
Outer Part Number - 33462-B

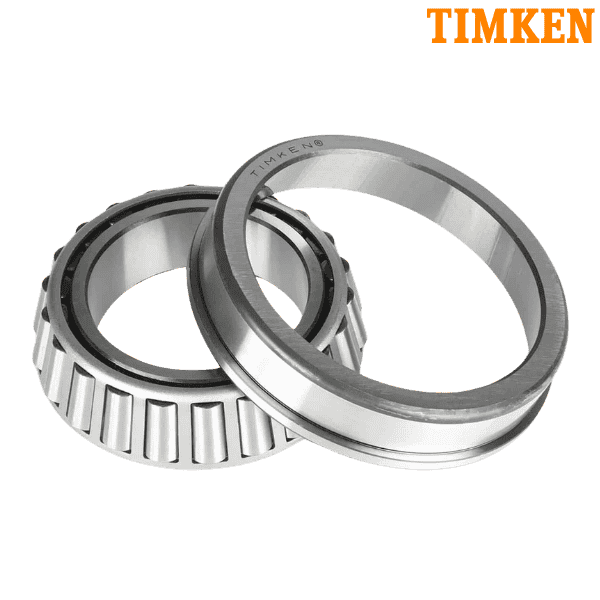

TSF - Single-Row Bearing with a Flange on the Outer Ring
