33251/33462D TIMKEN

Brand - TIMKEN
Item Number - 33251/33462D TIMKEN
Also Known As - 33251 - 33462D

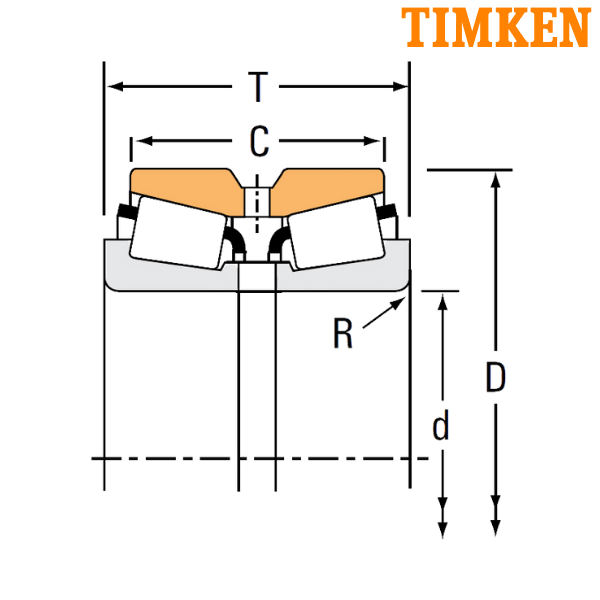

Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 63.5
Bore Diameter (d) inch - 2.5
Outer Diameter (D) mm - 117.475
Outer Diameter (D) inch - 4.625
Bearing Width across Cones (T) mm - 66.675
Bearing Width across Cones (T) inch - 2.625
Double Outer Ring Width (C) mm - 53.975
Double Outer Ring Width (C) inch - 2.125
Dynamic Load Rating (C1) N - 241000
Dynamic Load Rating (C1) lbf - 54200
Factor (e) - 0.44
Factor (Y1) - 1.55
Factor (Y2) - 2.31
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 35900
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 8060
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 26800
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 6020
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 62400
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 14000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.34
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Cone Backface Backing Diameter (db) mm - 73
Cone Backface Backing Diameter (db) inch - 2.87
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 112
Cup Frontface Backing Diameter (Da) inch - 4.41
Geometry Factor (G1) - 84.2
Geometry Factor (G2) - 25.9
Geometry Factor (Cg) - 0.1162
Bearing Weight (kg) - 3.18
Bearing Weight (lbs) - 7.02
Inner Part Number - 33251
Outer Part Number - 33462D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

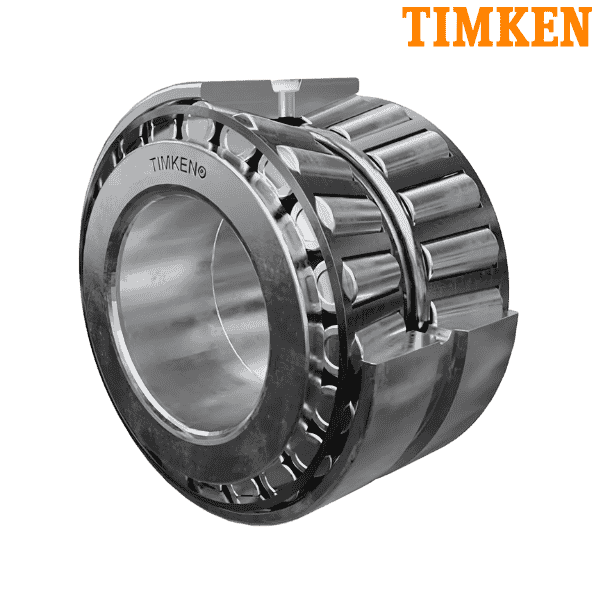

** Images are for representation purposes only
