3322-M FAG

Brand - FAG
Item Number - 3322-M FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 110
Outside Diameter (D) mm - 240
Width (B) mm - 92.1
Basic Dynamic Load Rating, Radial (Cr) N - 330000
Basic Static Load Rating, Radial (C0r) N - 425000
Fatigue Load Limit, Radial (Cur) N - 16800
Limiting Speed (nG) min–1 - 3750
Reference Speed (nϑr) min–1 - 2650
Weight (m) kg - 20
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 209.6
Shoulder Diameter Inner Ring (d1) mm - 161.5
Distance Between the Apexes of the Pressure Cones (a) mm - 170.5
Nominal Contact Angle (α)° - 35

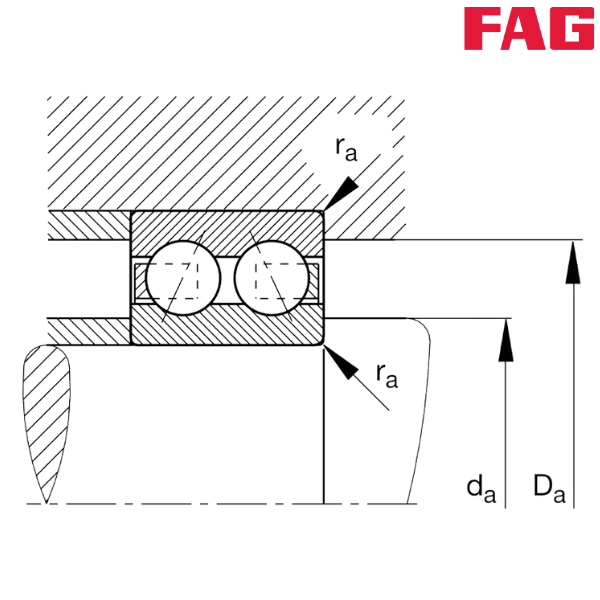

Minimum Diameter Shaft Shoulder (da) mm - 124
Maximum Diameter of Housing Shoulder (Da) mm - 226
Maximum Fillet Radius (ra) mm - 2.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
M - Brass Cage

** Images are for representation purposes only
