3322-DA-MA FAG

Brand - FAG
Item Number - 3322-DA-MA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 110
Outside Diameter (D) mm - 240
Width (B) mm - 92.1
Basic Dynamic Load Rating, Radial (Cr) N - 310000
Basic Static Load Rating, Radial (C0r) N - 385000
Fatigue Load Limit, Radial (Cur) N - 17400
Limiting Speed (nG) min–1 - 3800
Reference Speed (nϑr) min–1 - 2700
Weight (m) kg - 21.8
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 207.3
Shoulder Diameter Inner Ring (d1) mm - 164.5
Distance Between the Apexes of the Pressure Cones (a) mm - 221
Nominal Contact Angle (α)° - 45

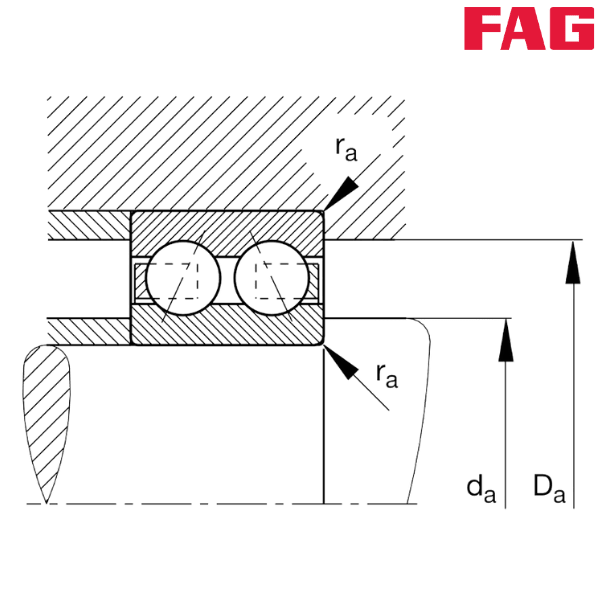

Minimum Diameter Shaft Shoulder (da) mm - 124
Maximum Diameter of Housing Shoulder (Da) mm - 226
Maximum Fillet Radius (ra) mm - 2.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
MA - Solid Brass Cage, Guided on Outer Ring
