Description
Brand - SKF

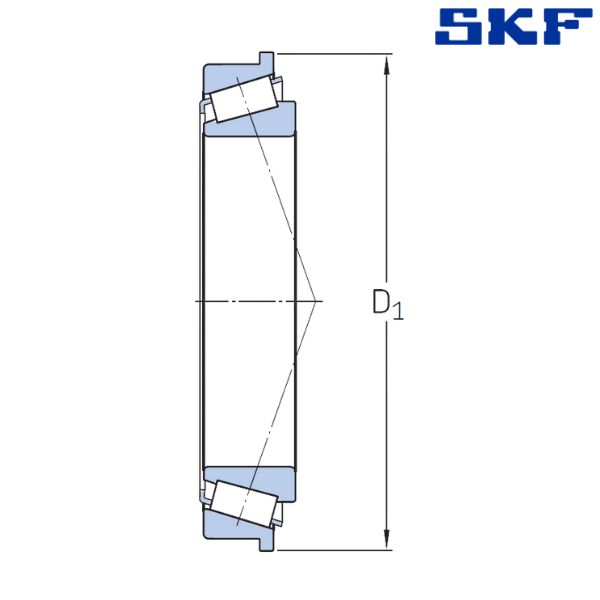

Item Number - 33215/S0QCL7C SKF
Category - Gearbox, Tapered roller bearings
Bore Diameter (d) mm - 75
Outer Diameter (D) mm - 130
Total Width (T) mm - 41
Width of Inner Ring (B) mm - 41
Width of Outer Ring (C) mm - 31
Dynamic Load Rating (C) kN - 209
Static Load Rating (C0) kN - 300
Limiting Speed (r/min) - 4800
Weight (kg) - 2.19
Limiting Value (e) - 0.43
Calculation Factor (Y) - 1.4
Calculation Factor (Y0) - 0.8
Designation Prefixes and Suffixes:
S0 - Bearing Rings or Washers Dimensionally Stabilized Up to +150 °C
Q - Optimized Internal Geometry and Surface Finish
