Description

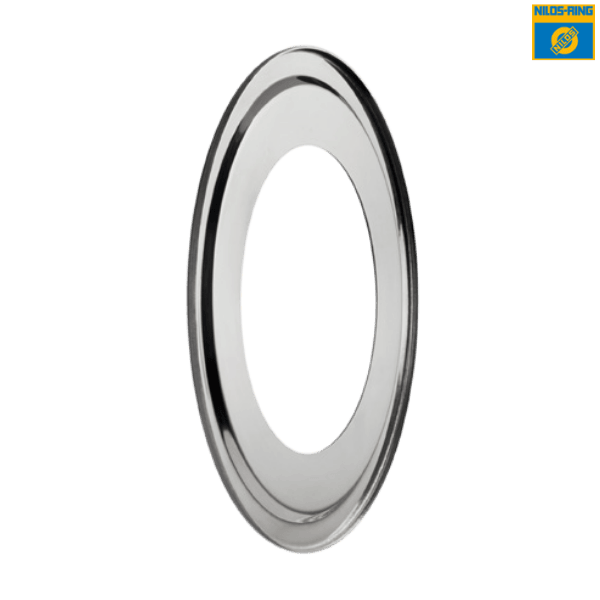

Brand - NILOS-RING
Item Number - 33213 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

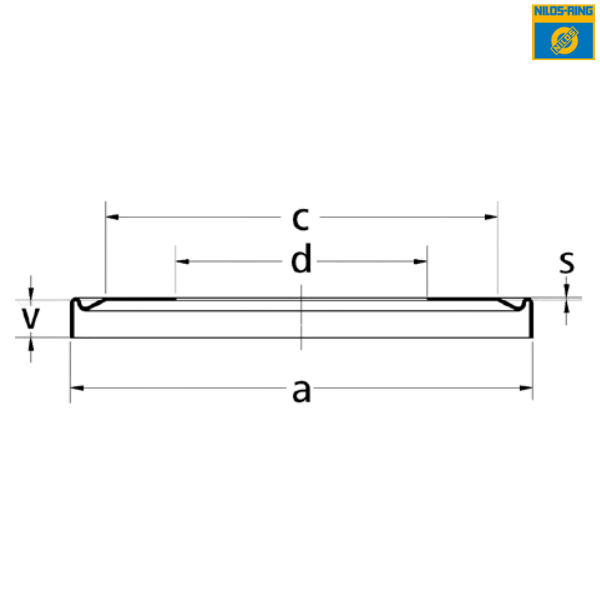

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 116.5 mm
Dimension (c) - 98 mm
Inner Diameter (d) - 65 mm
Thickness (s) - 0.5 mm
Width (v) - 9.2 mm

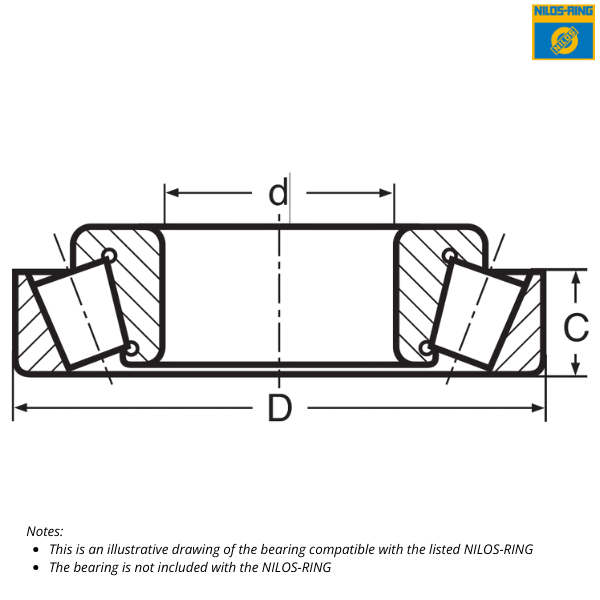

Description of Compatible Bearing (332 Series) :
Bearing Part Number - 33213
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 65 mm
Outer Diameter (D) - 120 mm
Width (C) - 32 mm
♦ ♦ Images are for representation purposes only
