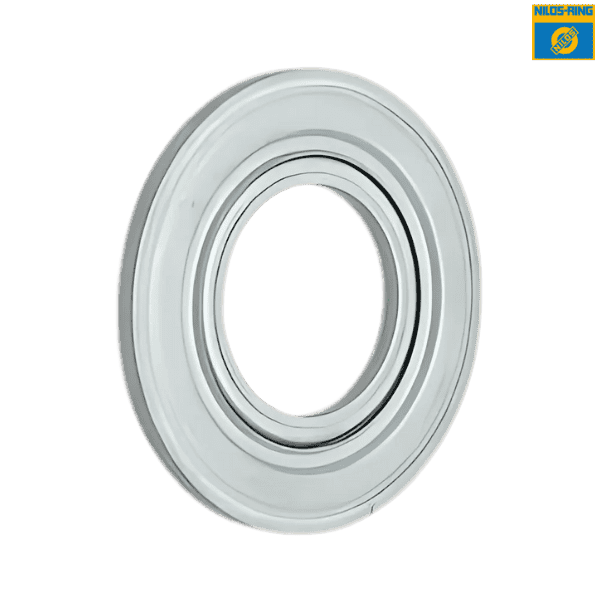

33213 AK NILOS-RING

Brand - NILOS-RING
Item Number - 33213 AK NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

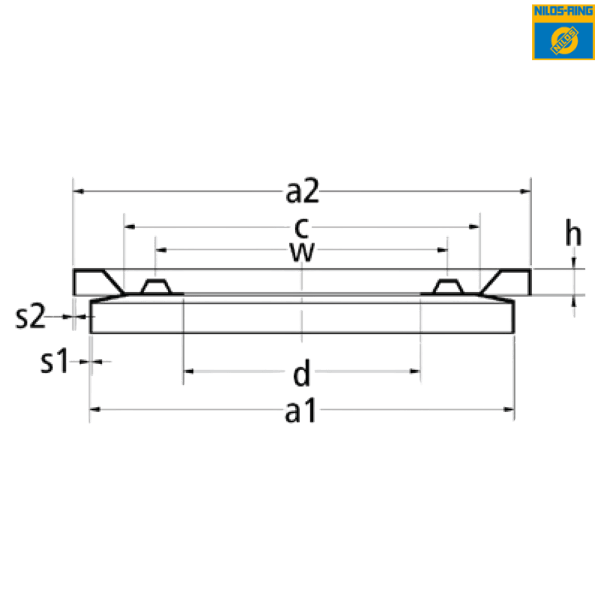

Principal Dimensions & Load Ratings (Metric) :
Dimension (a1) - 116.5 mm
Outer Diameter (a2) - 123 mm
Dimension (c) - 93 mm
Inner Diameter (d) - 65 mm
Dimension (w*) - 78 mm
Width (h) - 4.5 mm
Dimension (s1) - 0.5 mm
Dimension (s2) - 0.5 mm

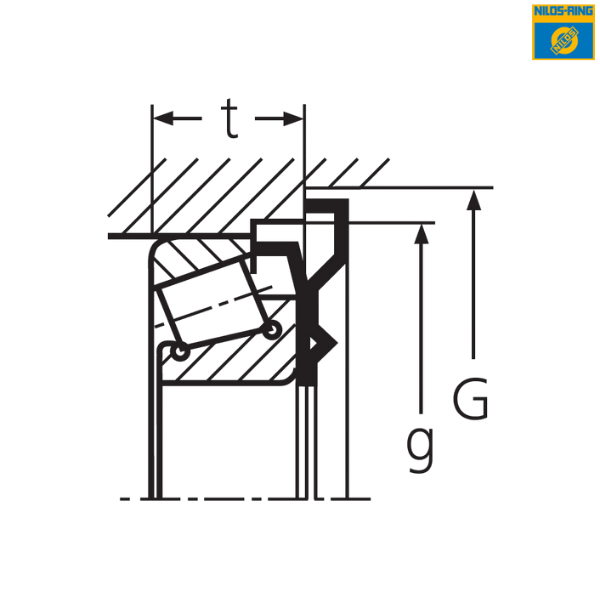

Dimension (G) - 125 mm
Dimension (g) - 120 mm
Dimension (t) - 41.6 mm

Description of Compatible Bearing (332 Series) :
Bearing Part Number - 33213
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 65 mm
Outer Diameter (D) - 120 mm
Width (C) - 32 mm

Other salient points to be noted :
* Locking nipples of NILOS-RINGS AK have a diameter of 4 mm at the bottom and a height of 1.5 mm

♦ ♦ Images are for representation purposes only
