3320-DA-MA FAG

Brand - FAG
Item Number - 3320-DA-MA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 100
Outside Diameter (D) mm - 215
Width (B) mm - 82.6
Basic Dynamic Load Rating, Radial (Cr) N - 260000
Basic Static Load Rating, Radial (C0r) N - 305000
Fatigue Load Limit, Radial (Cur) N - 13600
Limiting Speed (nG) min–1 - 4300
Reference Speed (nϑr) min–1 - 3050
Weight (m) kg - 15.6
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 187.1
Shoulder Diameter Inner Ring (d1) mm - 147.5
Distance Between the Apexes of the Pressure Cones (a) mm - 197.5
Nominal Contact Angle (α)° - 45

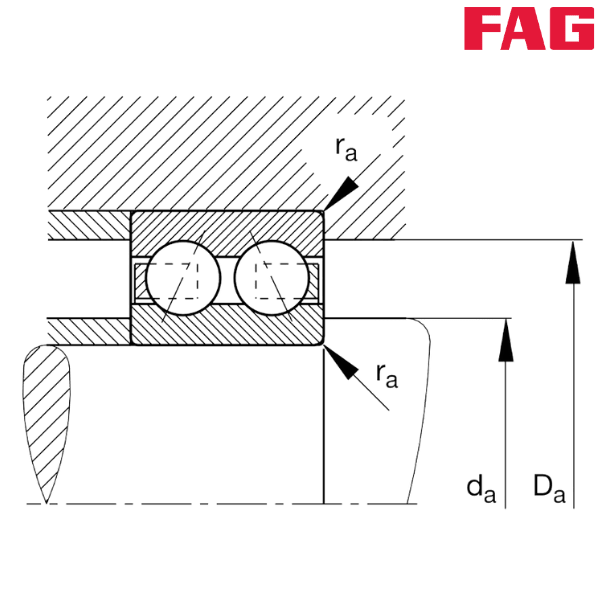

Minimum Diameter Shaft Shoulder (da) mm - 114
Maximum Diameter of Housing Shoulder (Da) mm - 201
Maximum Fillet Radius (ra) mm - 2.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
MA - Solid Brass Cage, Guided on Outer Ring

** Images are for representation purposes only
