3319-M FAG

Brand - FAG
Item Number - 3319-M FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 95
Outside Diameter (D) mm - 200
Width (B) mm - 77.8
Basic Dynamic Load Rating, Radial (Cr) N - 270000
Basic Static Load Rating, Radial (C0r) N - 315000
Fatigue Load Limit, Radial (Cur) N - 13500
Limiting Speed (nG) min–1 - 4450
Reference Speed (nϑr) min–1 - 3200
Weight (m) kg - 11.2
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 177.3
Shoulder Diameter Inner Ring (d1) mm - 133
Distance Between the Apexes of the Pressure Cones (a) mm - 143.3
Nominal Contact Angle (α)° - 35

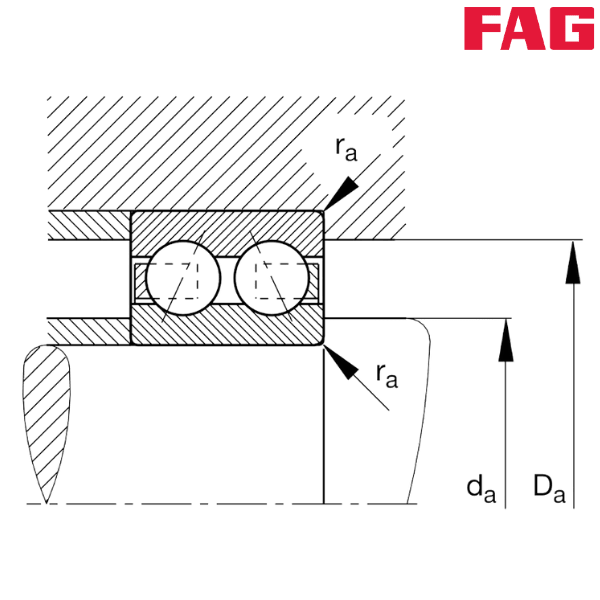

Minimum Diameter Shaft Shoulder (da) mm - 109
Maximum Diameter of Housing Shoulder (Da) mm - 186
Maximum Fillet Radius (ra) mm - 2.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
M - Brass Cage

** Images are for representation purposes only
