3318-DA-MA FAG

Brand - FAG
Item Number - 3318-DA-MA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 90
Outside Diameter (D) mm - 190
Width (B) mm - 73
Basic Dynamic Load Rating, Radial (Cr) N - 226000
Basic Static Load Rating, Radial (C0r) N - 247000
Fatigue Load Limit, Radial (Cur) N - 11600
Limiting Speed (nG) min–1 - 4850
Reference Speed (nϑr) min–1 - 3450
Weight (m) kg - 10.4
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 166.2
Shoulder Diameter Inner Ring (d1) mm - 131.9
Distance Between the Apexes of the Pressure Cones (a) mm - 177
Nominal Contact Angle (α)° - 45

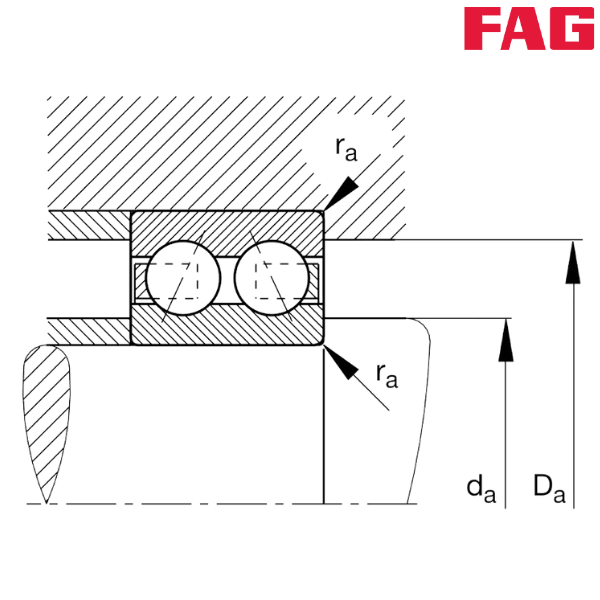

Minimum Diameter Shaft Shoulder (da) mm - 104
Maximum Diameter of Housing Shoulder (Da) mm - 176
Maximum Fillet Radius (ra) mm - 2.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
MA - Solid Brass Cage, Guided on Outer Ring

** Images are for representation purposes only
