3317-M FAG

Brand - FAG
Item Number - 3317-M FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 85
Outside Diameter (D) mm - 180
Width (B) mm - 73
Basic Dynamic Load Rating, Radial (Cr) N - 229000
Basic Static Load Rating, Radial (C0r) N - 255000
Fatigue Load Limit, Radial (Cur) N - 11400
Limiting Speed (nG) min–1 - 5000
Reference Speed (nϑr) min–1 - 3600
Weight (m) kg - 8.46
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 160
Shoulder Diameter Inner Ring (d1) mm - 119.6
Distance Between the Apexes of the Pressure Cones (a) mm - 131.5
Nominal Contact Angle (α)° - 35

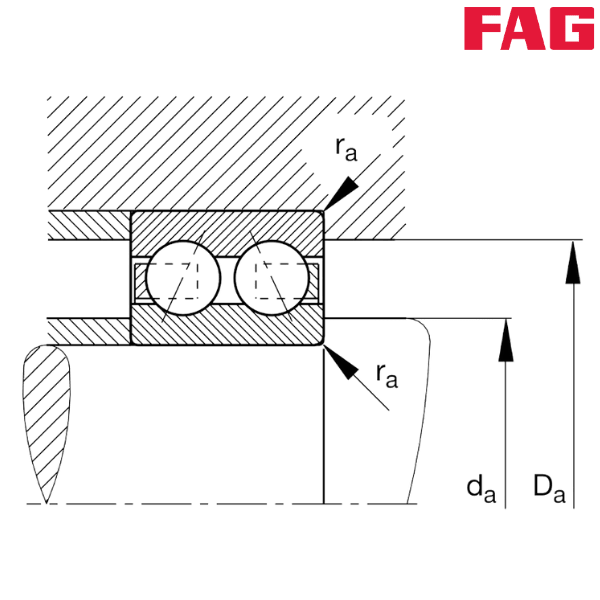

Minimum Diameter Shaft Shoulder (da) mm - 99
Maximum Diameter of Housing Shoulder (Da) mm - 166
Maximum Fillet Radius (ra) mm - 2.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
M - Brass Cage

** Images are for representation purposes only
