Description
Brand - FAG
Item Number - 3316 FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 80
Outside Diameter (D) mm - 170
Width (B) mm - 68.3
Basic Dynamic Load Rating, Radial (Cr) N - 208000
Basic Static Load Rating, Radial (C0r) N - 226000
Fatigue Load Limit, Radial (Cur) N - 10600
Limiting Speed (nG) min–1 - 4150
Reference Speed (nϑr) min–1 - 3900
Weight (m) kg - 6.79
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 149.7
Shoulder Diameter Inner Ring (d1) mm - 111.8
Distance Between the Apexes of the Pressure Cones (a) mm - 122.5
Nominal Contact Angle (α)° - 35

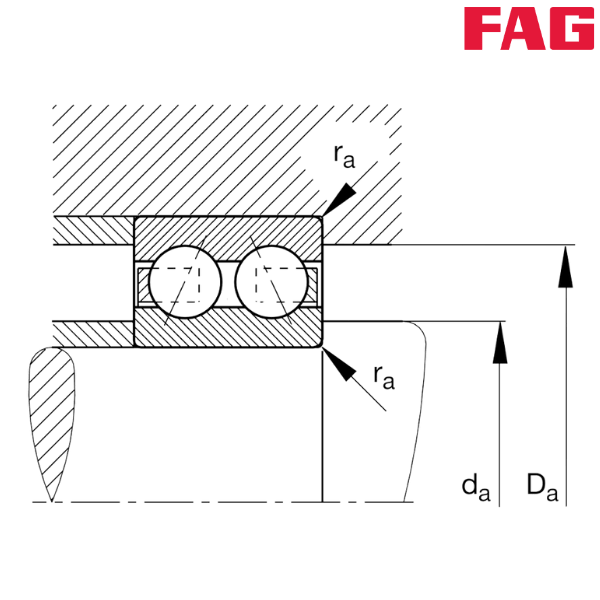

Minimum Diameter Shaft Shoulder (da) mm - 92
Maximum Diameter of Housing Shoulder (Da) mm - 158
Maximum Fillet Radius (ra) mm - 2.1
** Images are for representation purposes only
