Description
Brand - FAG
Item Number - 3314-DA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 70
Outside Diameter (D) mm - 150
Width (B) mm - 63.5
Basic Dynamic Load Rating, Radial (Cr) N - 157000
Basic Static Load Rating, Radial (C0r) N - 157000
Fatigue Load Limit, Radial (Cur) N - 8500
Limiting Speed (nG) min–1 - 4800
Reference Speed (nϑr) min–1 - 4550
Weight (m) kg - 5.36
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 132.4
Shoulder Diameter Inner Ring (d1) mm - 103.4
Distance Between the Apexes of the Pressure Cones (a) mm - 141
Nominal Contact Angle (α)° - 45

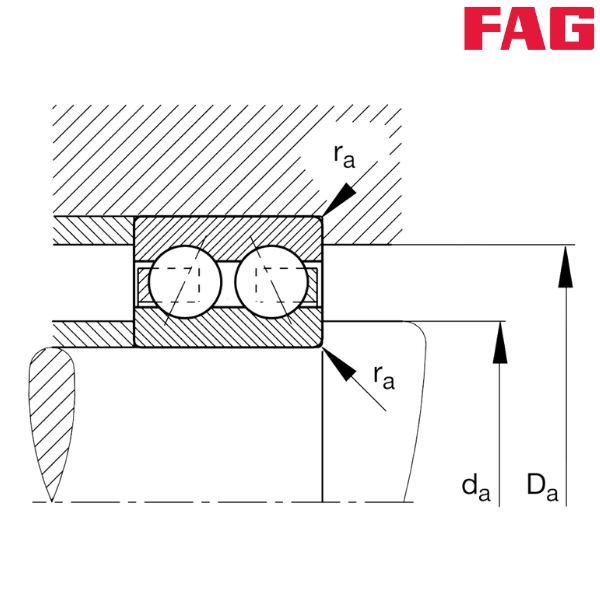

Minimum Diameter Shaft Shoulder (da) mm - 82
Maximum Diameter of Housing Shoulder (Da) mm - 138
Maximum Fillet Radius (ra) mm - 2.1
** Images are for representation purposes only
