Description
Brand - FAG
Item Number - 3313-DA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 65
Outside Diameter (D) mm - 140
Width (B) mm - 58.7
Basic Dynamic Load Rating, Radial (Cr) N - 139000
Basic Static Load Rating, Radial (C0r) N - 137000
Fatigue Load Limit, Radial (Cur) N - 7400
Limiting Speed (nG) min–1 - 5100
Reference Speed (nϑr) min–1 - 4650
Weight (m) kg - 4.38
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 124.1
Shoulder Diameter Inner Ring (d1) mm - 98.4
Distance Between the Apexes of the Pressure Cones (a) mm - 131
Nominal Contact Angle (α)° - 45

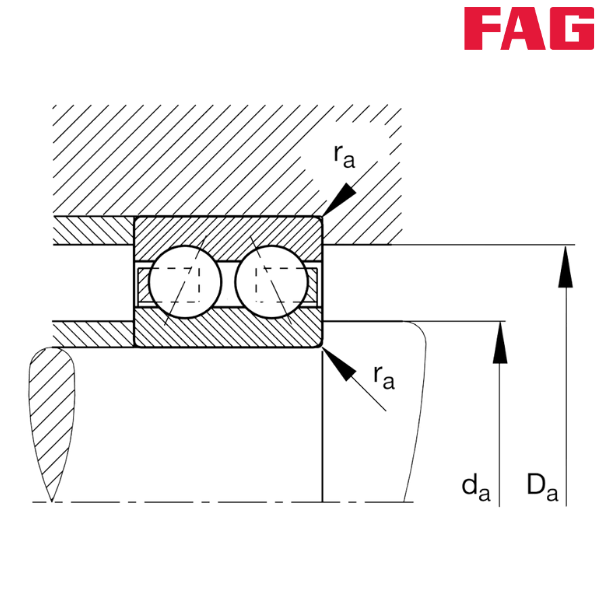

Minimum Diameter Shaft Shoulder (da) mm - 77
Maximum Diameter of Housing Shoulder (Da) mm - 128
Maximum Fillet Radius (ra) mm - 2.1
** Images are for representation purposes only
