3311-DA-MA FAG

Brand - FAG
Item Number - 3311-DA-MA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 55
Outside Diameter (D) mm - 120
Width (B) mm - 49.2
Basic Dynamic Load Rating, Radial (Cr) N - 105000
Basic Static Load Rating, Radial (C0r) N - 101000
Fatigue Load Limit, Radial (Cur) N - 5600
Limiting Speed (nG) min–1 - 8000
Reference Speed (nϑr) min–1 - 5200
Weight (m) kg - 2.85
Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 105.3
Shoulder Diameter Inner Ring (d1) mm - 81.6
Distance Between the Apexes of the Pressure Cones (a) mm - 111
Nominal Contact Angle (α)° - 45

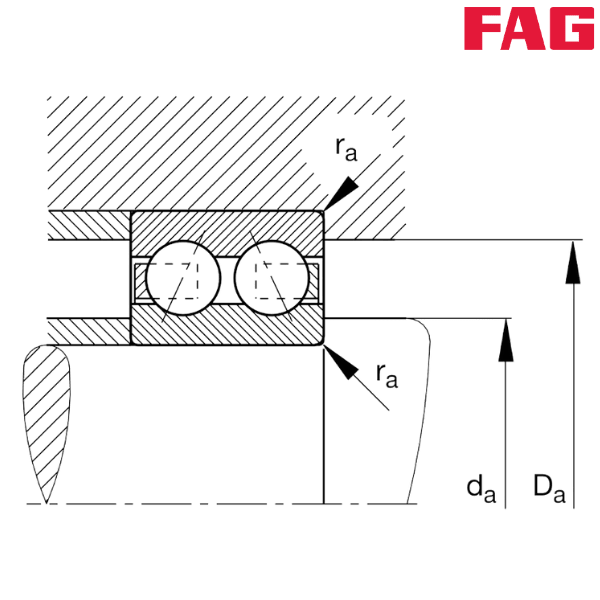

Minimum Diameter Shaft Shoulder (da) mm - 66
Maximum Diameter of Housing Shoulder (Da) mm - 109
Maximum Fillet Radius (ra) mm - 2

Descriptions of Suffixes :
--------------------------------------------------------------------------
MA - Solid Brass Cage, Guided on Outer Ring

** Images are for representation purposes only
