Description
Brand - NILOS
Item Number - 3310 AV NILOS
Category - NILOS-RING for Double Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 50 mm
Outer Diameter (a) - 103 mm
Dimension (C) - 83 mm
Widtth (h) - 3 mm
Material Thickness (s) - 0.3 mm

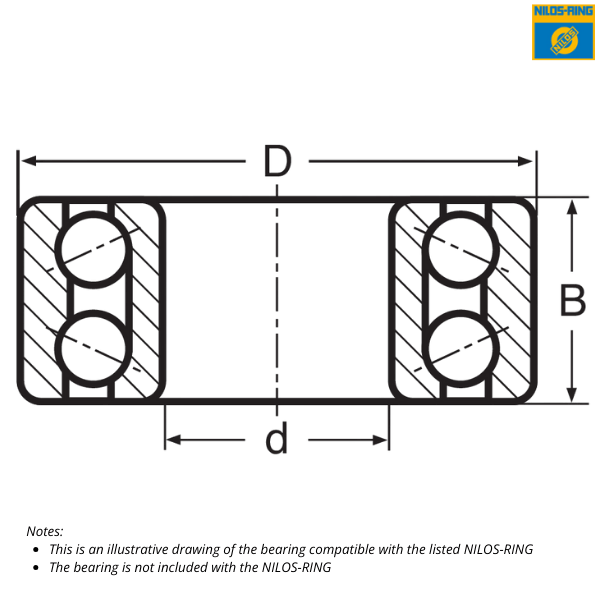

Description of Compatible Bearing (33 Series) :
Bearing Part Number - 3310
Bearing Type - Double Row Angular Contact Ball Bearing
Inner Diameter (d) - 50 mm
Outer Diameter (D) - 110 mm
Width (B) - 44.4 mm
♦♦ Images are for representation purposes only
Item Number - 3310 AV NILOS
Category - NILOS-RING for Double Row Angular Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 50 mm
Outer Diameter (a) - 103 mm
Dimension (C) - 83 mm
Widtth (h) - 3 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (33 Series) :
Bearing Part Number - 3310
Bearing Type - Double Row Angular Contact Ball Bearing
Inner Diameter (d) - 50 mm
Outer Diameter (D) - 110 mm
Width (B) - 44.4 mm
♦♦ Images are for representation purposes only
