Description
Brand - FAG
Item Number - 3309-DA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 45
Outside Diameter (D) mm - 100
Width (B) mm - 39.7
Basic Dynamic Load Rating, Radial (Cr) N - 71000
Basic Static Load Rating, Radial (C0r) N - 64000
Fatigue Load Limit, Radial (Cur) N - 3600
Limiting Speed (nG) min–1 - 7500
Reference Speed (nϑr) min–1 - 5800
Weight (m) kg - 1.55
Minimum Chamfer Dimension (r min) mm - 1.5
Shoulder Diameter Outer Ring (D1) mm - 86.7
Shoulder Diameter Inner Ring (d1) mm - 68.3
Distance Between the Apexes of the Pressure Cones (a) mm - 93
Nominal Contact Angle (α)° - 45

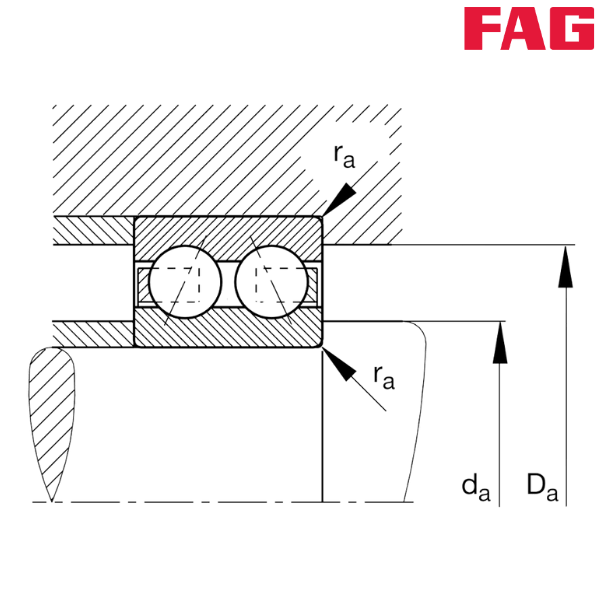

Minimum Diameter Shaft Shoulder (da) mm - 54
Maximum Diameter of Housing Shoulder (Da) mm - 91
Maximum Fillet Radius (ra) mm - 1.5
** Images are for representation purposes only
