3308-DA-MA FAG

Brand - FAG
Item Number - 3308-DA-MA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 40
Outside Diameter (D) mm - 90
Width (B) mm - 36.5
Basic Dynamic Load Rating, Radial (Cr) N - 62000
Basic Static Load Rating, Radial (C0r) N - 52000
Fatigue Load Limit, Radial (Cur) N - 3300
Limiting Speed (nG) min–1 - 10700
Reference Speed (nϑr) min–1 - 6000
Weight (m) kg - 1.2
Minimum Chamfer Dimension (r min) mm - 1.5
Shoulder Diameter Outer Ring (D1) mm - 79.7
Shoulder Diameter Inner Ring (d1) mm - 61.7
Distance Between the Apexes of the Pressure Cones (a) mm - 85
Nominal Contact Angle (α)° - 45

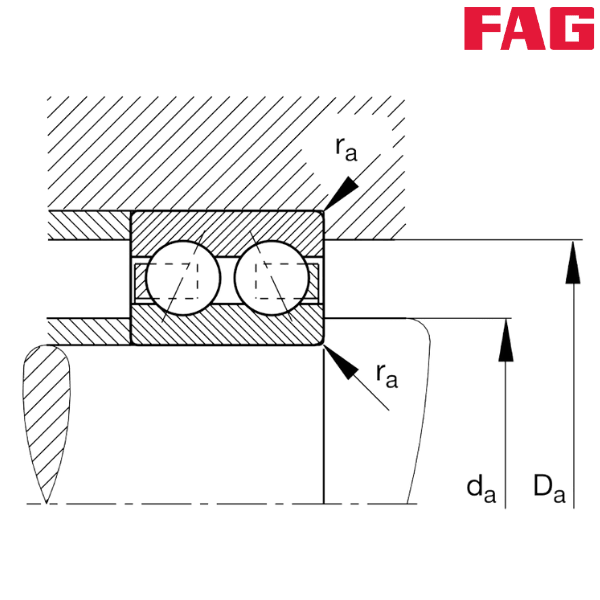

Minimum Diameter Shaft Shoulder (da) mm - 49
Maximum Diameter of Housing Shoulder (Da) mm - 81
Maximum Fillet Radius (ra) mm - 1.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
MA - Solid Brass Cage, Guided on Outer Ring

** Images are for representation purposes only
