Description
Brand - FAG
Item Number - 3307-DA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 35
Outside Diameter (D) mm - 80
Width (B) mm - 34.9
Basic Dynamic Load Rating, Radial (Cr) N - 50000
Basic Static Load Rating, Radial (C0r) N - 41000
Fatigue Load Limit, Radial (Cur) N - 2650
Limiting Speed (nG) min–1 - 9600
Reference Speed (nϑr) min–1 - 7100
Weight (m) kg - 0.889
Minimum Chamfer Dimension (r min) mm - 1.5
Shoulder Diameter Outer Ring (D1) mm - 69.5
Shoulder Diameter Inner Ring (d1) mm - 55.2
Distance Between the Apexes of the Pressure Cones (a) mm - 75
Nominal Contact Angle (α)° - 45

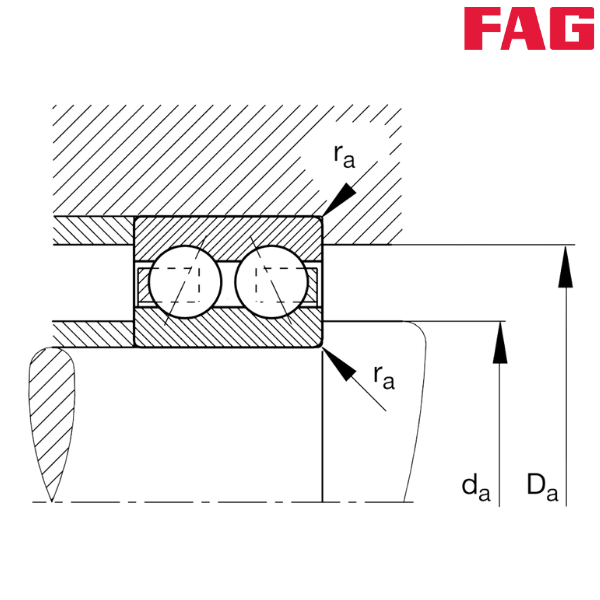

Minimum Diameter Shaft Shoulder (da) mm - 44
Maximum Diameter of Housing Shoulder (Da) mm - 71
Maximum Fillet Radius (ra) mm - 1.5
** Images are for representation purposes only
