Description
Brand - FAG
Item Number - 3306-DA FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 30
Outside Diameter (D) mm - 72
Width (B) mm - 30.2
Basic Dynamic Load Rating, Radial (Cr) N - 41500
Basic Static Load Rating, Radial (C0r) N - 34500
Fatigue Load Limit, Radial (Cur) N - 1870
Limiting Speed (nG) min–1 - 10900
Reference Speed (nϑr) min–1 - 7500
Weight (m) kg - 0.657
Minimum Chamfer Dimension (r min) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 61.5
Shoulder Diameter Inner Ring (d1) mm - 48.2
Distance Between the Apexes of the Pressure Cones (a) mm - 67
Nominal Contact Angle (α)° - 45

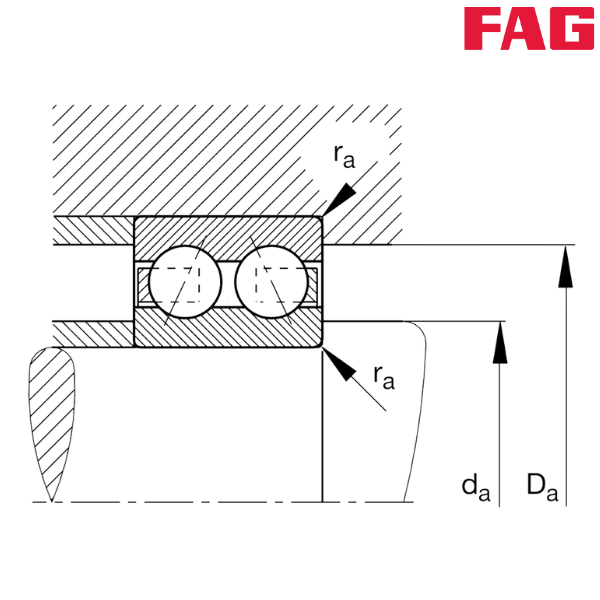

Minimum Diameter Shaft Shoulder (da) mm - 37
Maximum Diameter of Housing Shoulder (Da) mm - 65
Maximum Fillet Radius (ra) mm - 1
** Images are for representation purposes only
