Description
Brand - NILOS-RING
Item Number - 33026 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

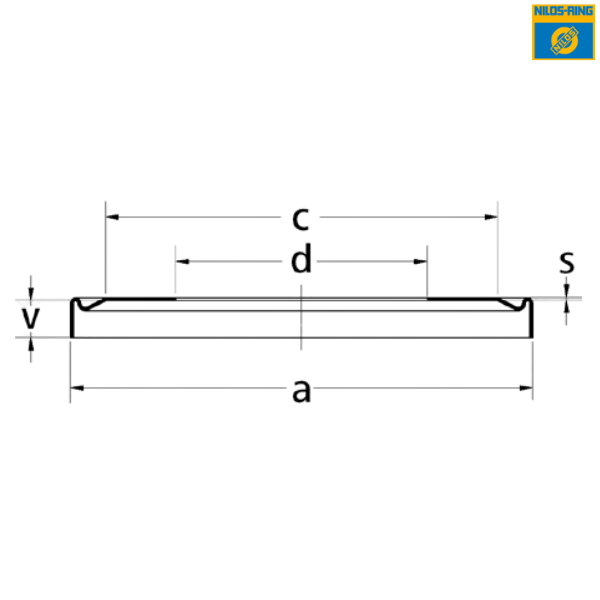

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 195 mm
Dimension (c) - 175 mm
Inner Diameter (d) - 130 mm
Thickness (s) - 0.5 mm
Width (v) - 12.5 mm
Description of Compatible Bearing (330 Series) :
Bearing Part Number - 33026
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 130 mm
Outer Diameter (D) - 200 mm
Width (C) - 43 mm
♦ ♦ Images are for representation purposes only
