3302-BD-XL-2HRS-TVH FAG

Brand - FAG
Item Number - 3302-BD-XL-2HRS-TVH FAG
Category - Angular Contact Ball Bearing Double Row
Bore Diameter (d) mm - 15
Outside Diameter (D) mm - 42
Width (B) mm - 19
Basic Dynamic Load Rating, Radial (Cr) N - 17000
Basic Static Load Rating, Radial (C0r) N - 10400
Fatigue Load Limit, Radial (Cur) N - 720
Limiting Speed (nG) min–1 - 13800
Weight (m) kg - 0.122
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 37.9
Caliber Diamter Inner Ring (d2) mm - 25.8
Distance Between the Apexes of the Pressure Cones (a) mm - 24.8
Nominal Contact Angle (α)° - 30

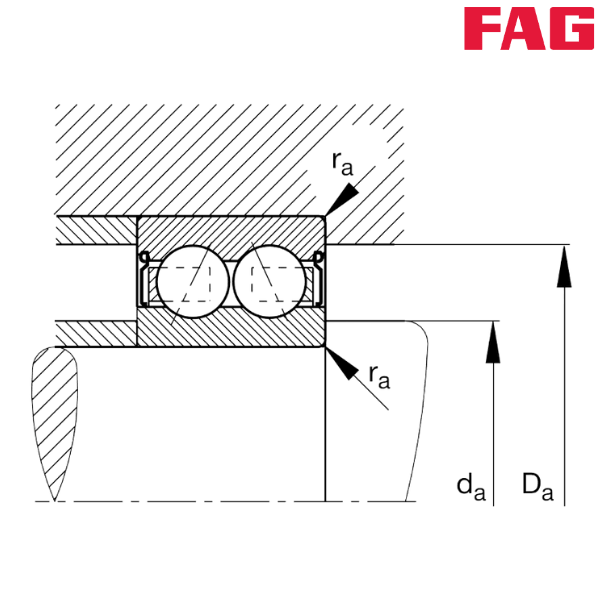

Minimum Diameter Shaft Shoulder (da) mm - 20.6
Maximum Diameter of Housing Shoulder (Da) mm - 36.4
Maximum Fillet Radius (ra) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
2HRS - Contact Seal on Both Side
