Description

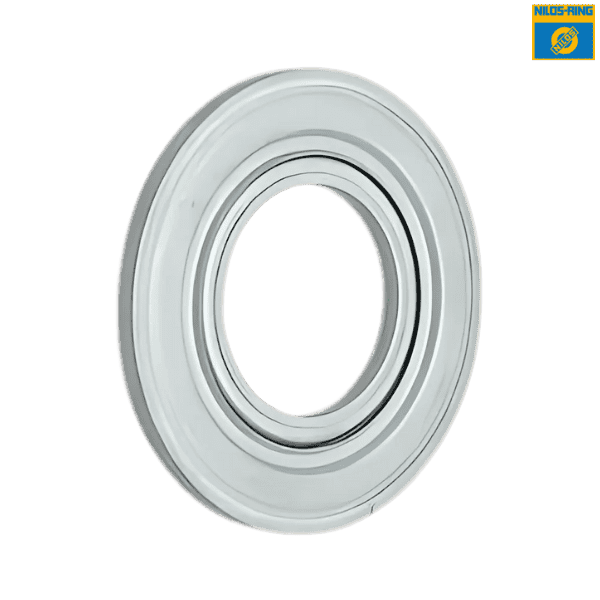

Brand - NILOS-RING
Item Number - 33019 AK NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

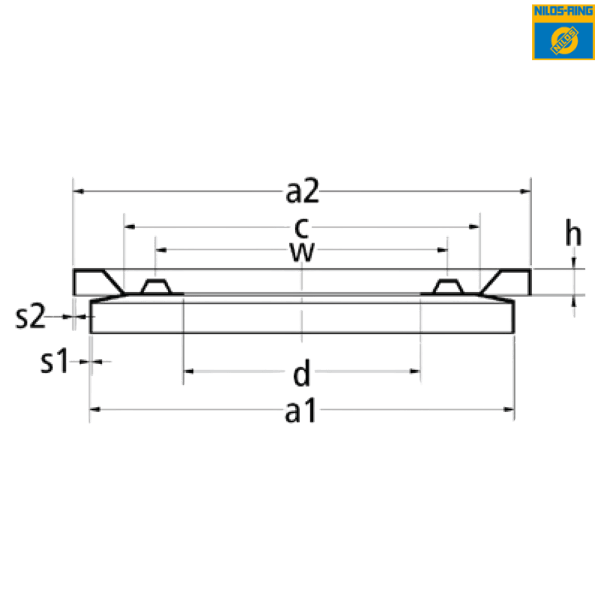

Principal Dimensions & Load Ratings (Metric) :
Dimension (a1) - 142 mm
Outer Diameter (a2) - 148 mm
Dimension (c) - 120 mm
Inner Diameter (d) - 95 mm
Dimension (w*) - 107 mm
Width (h) - 5 mm
Dimension (s1) - 0.5 mm
Dimension (s2) - 0.5 mm

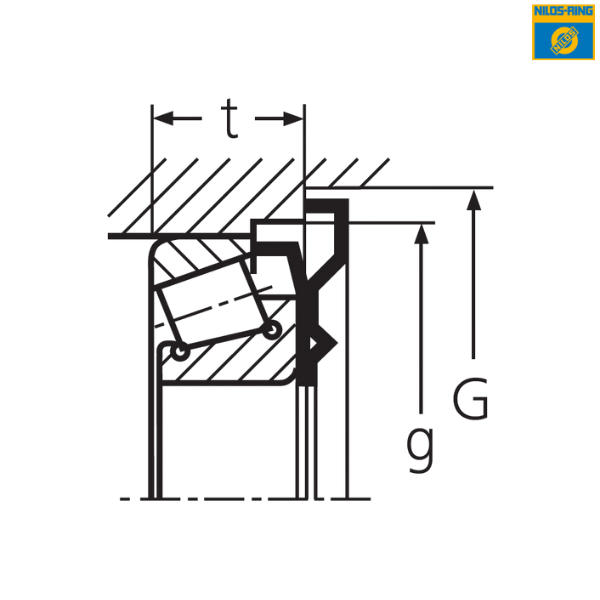

Dimension (G) - 150 mm
Dimension (g) - 145 mm
Dimension (t) - 39.6 mm
Description of Compatible Bearing (330 Series) :
Bearing Part Number - 33019
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 95 mm
Outer Diameter (D) - 145 mm
Width (C) - 32.5 mm
Other salient points to be noted :
* Locking nipples of NILOS-RINGS AK have a diameter of 4 mm at the bottom and a height of 1.5 mm
♦ ♦ Images are for representation purposes only
