33008 AV NILOS-RING

Brand - NILOS-RING
Item Number - 33008 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

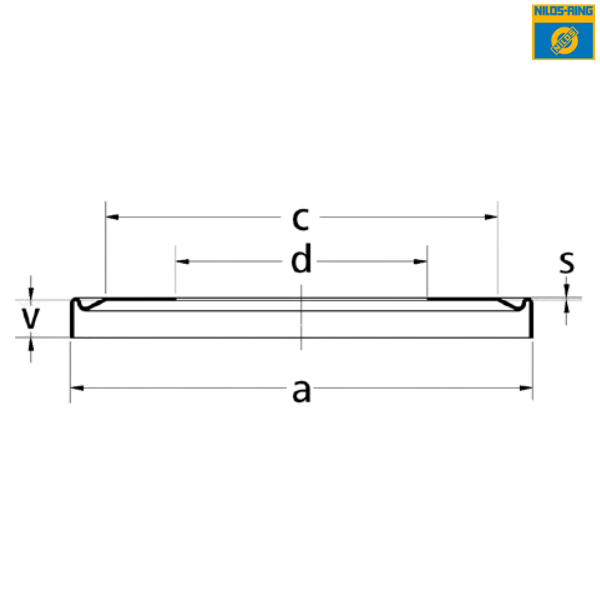

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 66.5 mm
Dimension (c) - 56 mm
Inner Diameter (d) - 40 mm
Thickness (s) - 0.3 mm
Width (v) - 4.5 mm

Description of Compatible Bearing (330 Series) :
Bearing Part Number - 33008
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 40 mm
Outer Diameter (D) - 68 mm
Width (C) - 18 mm

♦ ♦ Images are for representation purposes only
