Description
Brand - NILOS-RING
Item Number - 33007 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

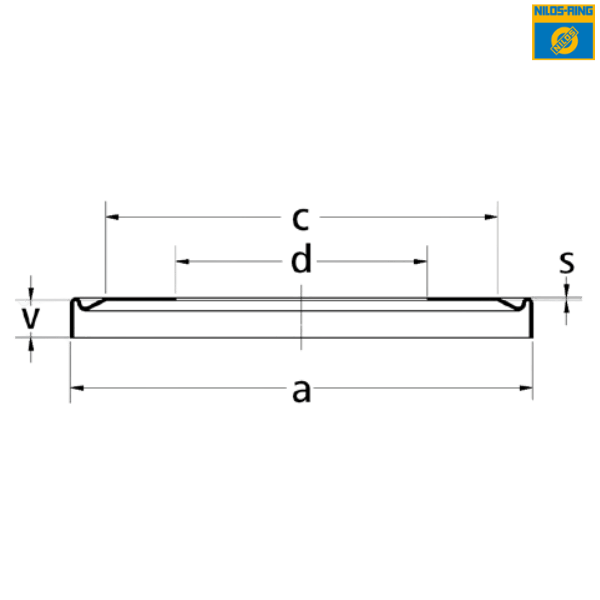

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 60 mm
Dimension (c) - 53 mm
Inner Diameter (d) - 35 mm
Thickness (s) - 0.3 mm
Width (v) - 4.2 mm

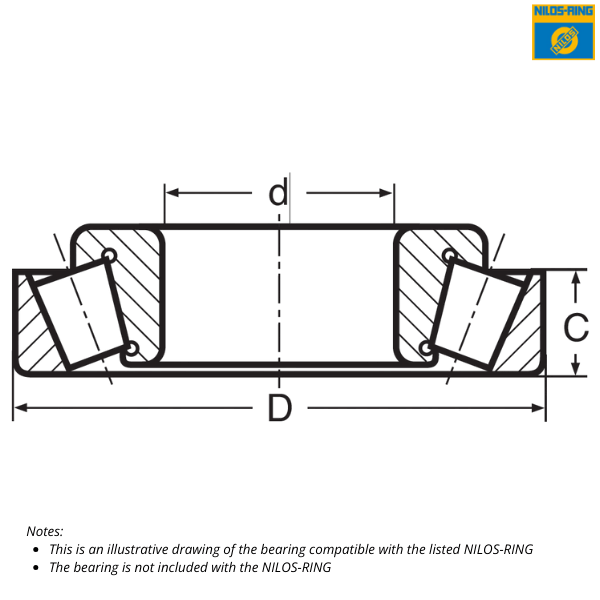

Description of Compatible Bearing (330 Series) :
Bearing Part Number - 33007
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 35 mm
Outer Diameter (D) - 62 mm
Width (C) - 17 mm

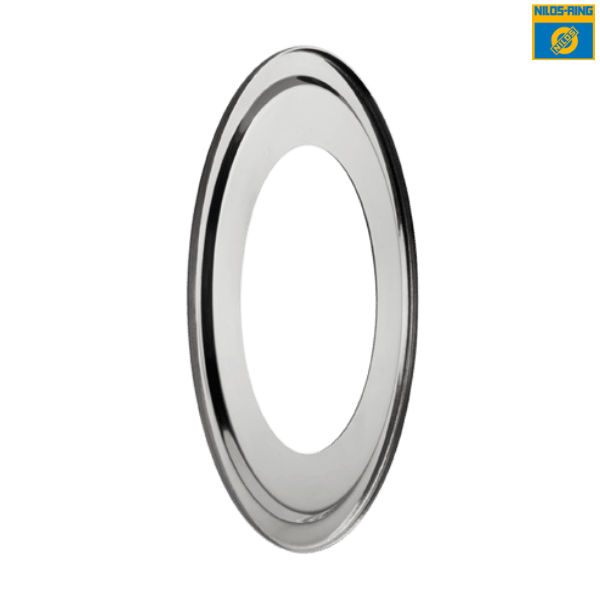

♦ ♦ Images are for representation purposes only
