33005 AV NILOS-RING

Brand - NILOS-RING
Item Number - 33005 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

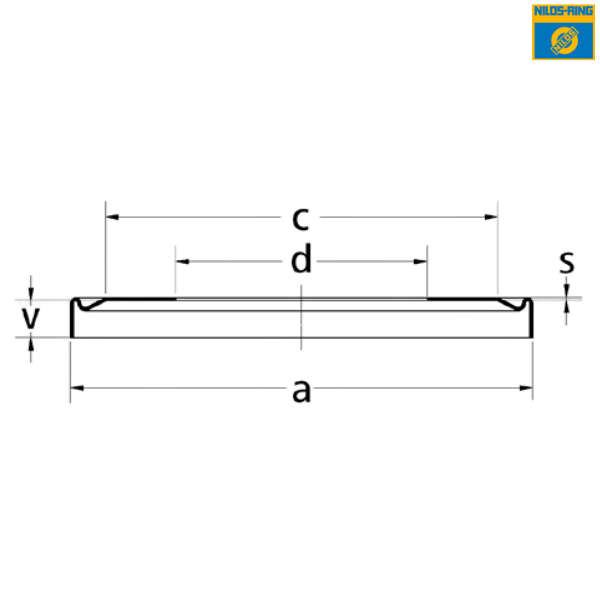

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 46 mm
Dimension (c) - 9 mm
Inner Diameter (d) - 25 mm
Thickness (s) - 0.3 mm
Width (v) - 3.5 mm

Description of Compatible Bearing (330 Series) :
Bearing Part Number - 33005
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 25 mm
Outer Diameter (D) - 47 mm
Width (C) - 14 mm

♦ ♦ Images are for representation purposes only
