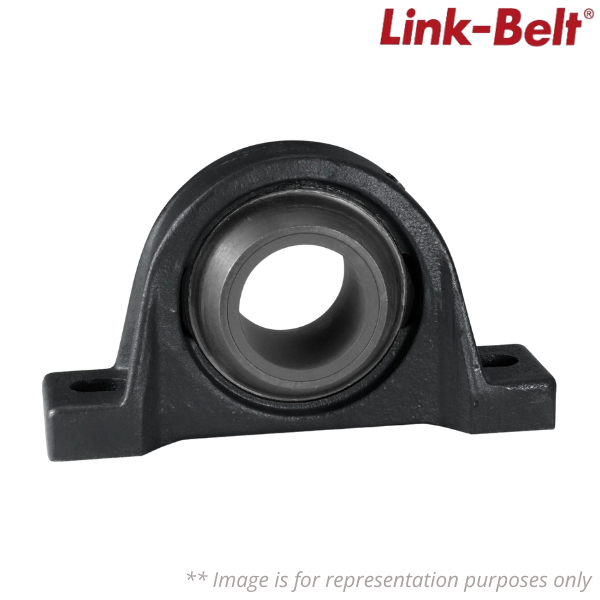

32E40PHT4M7 Link-Belt

Brand - Link-Belt
Item Number - 32E40PHT4M7 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 793699182187
Material - 10426644
Model - 3200P
Bore Size (in) - 2 1/2 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Sleeve Material - Ductile Iron
Base to Centerline Height (in) - 2 11/16 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - DUCTILE IRON SLEEVE BRG
Bore Length (in) - 2 11/16 in
Distance Between Bolt Holes (in) - 7 1/2 in
Distance from Bearing Centerline to Cap Face (in) - 2 7/64 in
Distance from Bearing Centerline to Inner Ring Short Hub Face (in) - 1 11/32 in
Expansion Type - Non-Expansion Bearing (Fixed)
Height - 5.5
Insert Component Hub Diameter (in) - 3 1/4 in
Length - 9.5
Lubrication Type - SELF LUBRICATING SLEEVE
Maximum Temperature (C) - 537 C
Maximum Temperature (F) - 1000 F
Mounting Bolt Hole Slot Length (in) - 1 1/16 in
Mounting Bolt Size (in) - 5/8 in
Mounting Pad Height (in) - 1 1/8 in
Mounting Pad Length (in) - 9 1/2 in
Mounting Pad Width (in) - 2 1/2 in
Weight (kg) - 5.54743016
