32948 SKF

SKF

Download Data Sheet

Country Of Origin: SWEDEN

Variant

Share this product

Brand - SKF
Item Number - 32948 SKF
Category - Gearbox, Tapered roller bearings

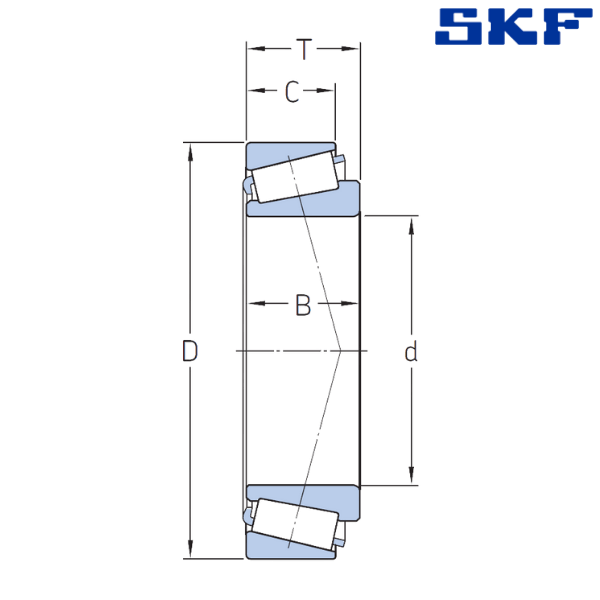

Bore Diameter (d) mm - 240
Outer Diameter (D) mm - 320
Total Width (T) mm - 51
Width of Inner Ring (B) mm - 51
Width of Outer Ring (C) mm - 39
Dynamic Load Rating (C) kN - 624
Static Load Rating (C0) kN - 1080
Limiting Speed (r/min) - 1900
Weight (kg) - 11
Limiting Value (e) - 0.46
Calculation Factor (Y) - 1.3
Calculation Factor (Y0) - 0.7

** Images are for representation purposes only
