Description
Brand - ZEN
Item Number - 32913 ZEN
Category - Tapered Roller Bearings
Inner Roller Bearing (d) mm - 65
Outer Diameter (D) mm - 90
T (mm) - 17
Width (B) mm - 17
C (mm) - 14
d1 (mm) - 79
r1 (mm) - 1
r2 (mm) - 1
r3 (mm) - 1
r4 (mm) - 1
Weight (kg) - 0.326
Dynamic Laod Rating (N) - 47025
Static Load Rating (N) - 83600
Limiting Speed - 7410
Outer Ring Material - AISI52100
Inner Ring Material - AISI52101
Rollers Material - AISI52102
Cage Material - #10 / 08F

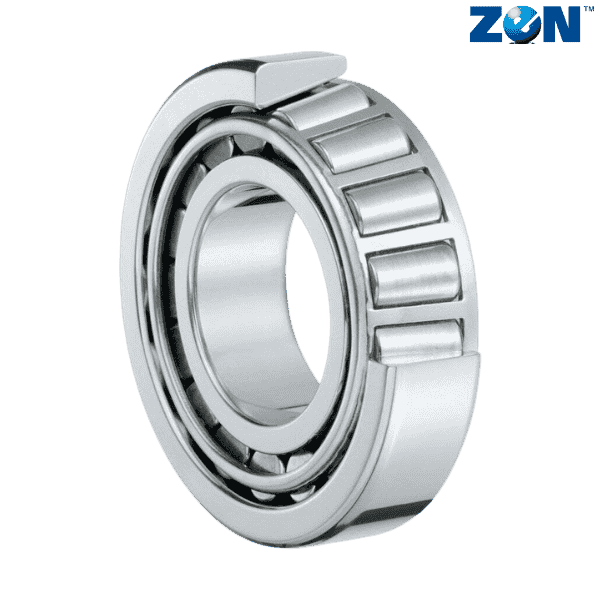

** Images are for representation purposes only
