Description
Brand - ZEN
Item Number - 32910 ZEN
Category - Tapered Roller Bearings
Inner Roller Bearing (d) mm - 50
Outer Diameter (D) mm - 72
T (mm) - 15
Width (B) mm - 15
C (mm) - 12
d1 (mm) - 61.6
r1 (mm) - 0.6
r2 (mm) - 0.6
r3 (mm) - 0.6
r4 (mm) - 0.6
Weight (kg) - 0.2
Dynamic Laod Rating (N) - 33725
Static Load Rating (N) - 52250
Limiting Speed - 9405
Outer Ring Material - AISI52100
Inner Ring Material - AISI52101
Rollers Material - AISI52102
Cage Material - #10 / 08F

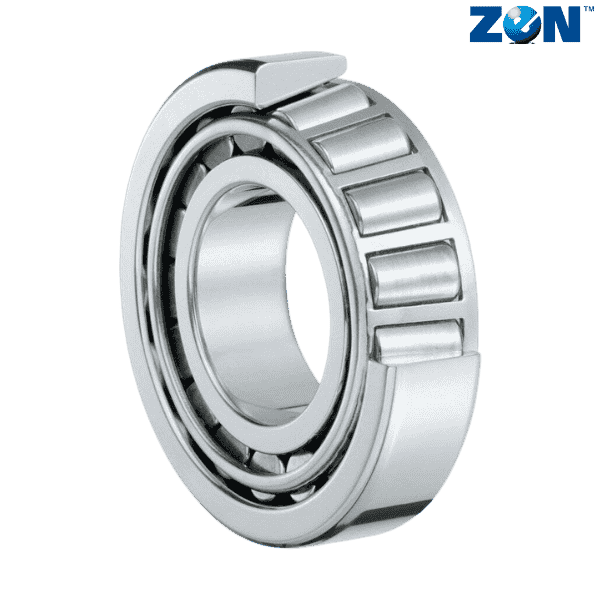

** Images are for representation purposes only
