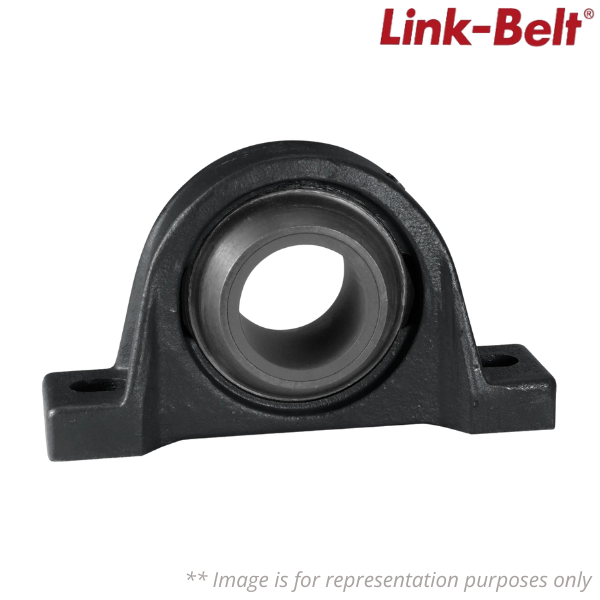

3263PT3C Link-Belt

Brand - Link-Belt
Item Number - 3263PT3C Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327439361
Material - 10426643
Model - 3200P
Bore Size (in) - 3 15/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Sleeve Material - Carbon Graphite Self-Lubricating
Auxiliary Seals - 1 CLOSED CAP STEEL
Available End Cap - 3536
Base to Centerline Height (in) - 4 7/16 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Bore Length (in) - 4 15/16 in
Distance Between Bolt Holes (in) - 11 7/8 in
Distance from Bearing Centerline to Cap Face (in) - 3 1/64 in
Distance from Bearing Centerline to Inner Ring Short Hub Face (in) - 2 15/32 in
Expansion Type - Non-Expansion Bearing (Fixed)
Height - 15.63
Insert - 3263T3
Insert Component Hub Diameter (in) - 4 7/8 in
Length - 9.13
Lubrication Type - SELF LUBRICATING SLEEVE
Maximum Temperature (C) - 371 C
Maximum Temperature (F) - 700 F
Mounting Bolt Hole Slot Length (in) - 1 7/8 in
Mounting Bolt Size (in) - 7/8 in
Mounting Pad Height (in) - 1 13/16 in
