Description

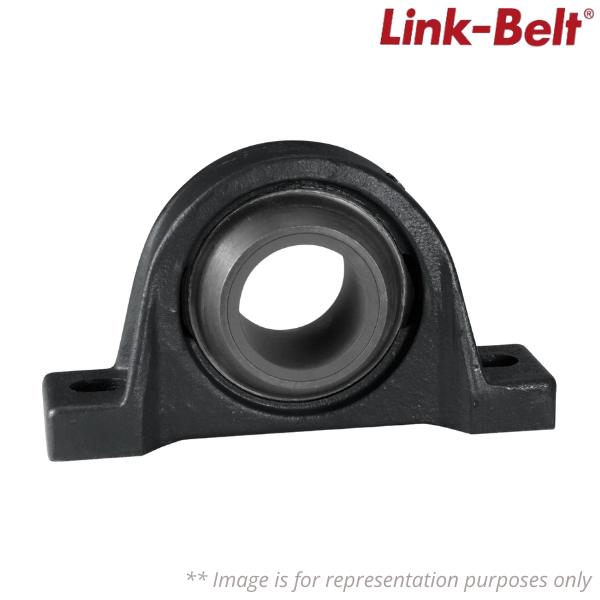

Brand - Link-Belt
Item Number - 3248PT3 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 793699327274
Material - 10407061
Model - 3200P
Bore Size (in) - 3 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Base to Centerline Height (in) - 3.25 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Distance Between Bolt Holes (in) - 8.875 in
Insert - 3248T3
Lubrication Type - SELF LUBRICATING SLEEVE
Weight (kg) - 9.71140472
