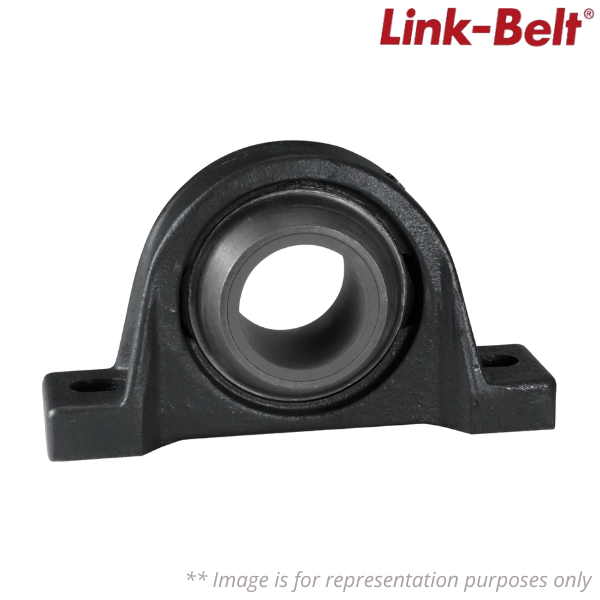

Description
Brand - Link-Belt
Item Number - 3247PT3 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327200329
Material - 10438886
Model - 3200P
Bore Size (in) - 2 15/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Sleeve Material - Carbon Graphite Self-Lubricating
Base to Centerline Height (in) - 3 1/4 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Bore Length (in) - 3 5/16 in
Distance Between Bolt Holes (in) - 8 7/8 in
Distance from Bearing Centerline to Cap Face (in) - 2 7/32 in
Distance from Bearing Centerline to Inner Ring Short Hub Face (in) - 1 21/32 in
