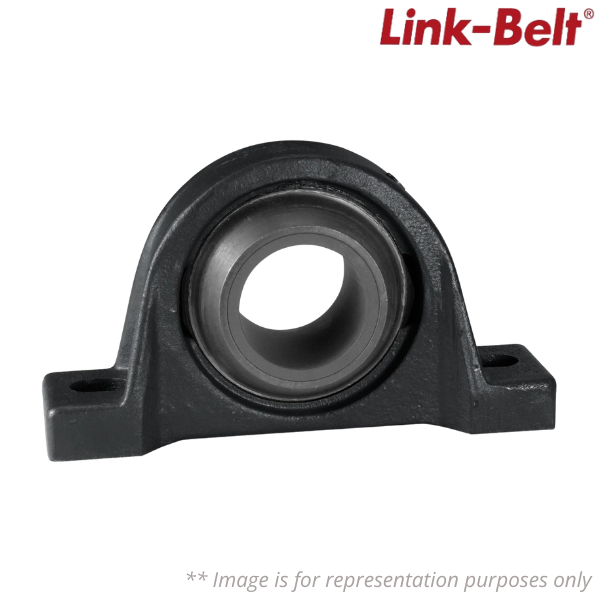

Description
Brand - Link-Belt
Item Number - 3239PT3 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327200183
Material - 10429660
Model - 3200P
Bore Size (in) - 2 7/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Sleeve Material - Carbon Graphite Self-Lubricating
Base to Centerline Height (in) - 2 11/16 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - CARBON GRAPHITE SLEEVE BRG
Bore Length (in) - 2 11/16 in
Distance Between Bolt Holes (in) - 7 1/2 in
Distance from Bearing Centerline to Cap Face (in) - 2 7/64 in
Distance from Bearing Centerline to Inner Ring Short Hub Face (in) - 1 11/32 in
