Description

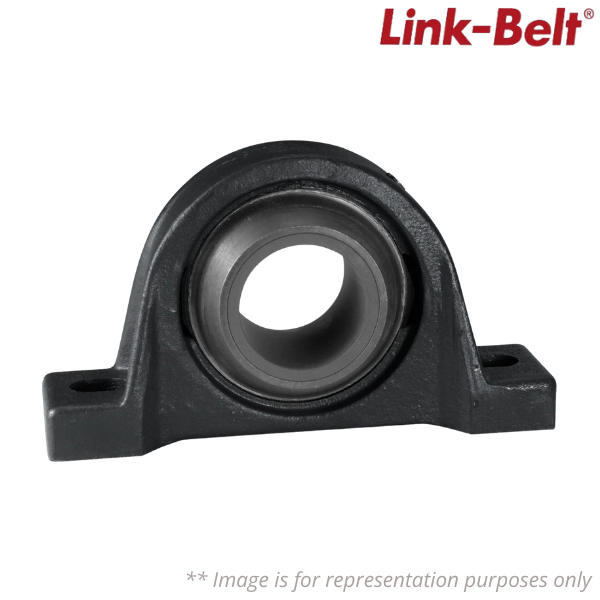

Brand - Link-Belt
Item Number - 3239PT1 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327200169
Material - 10443663
Model - 3200P
Bore Size (in) - 2.4375 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Base to Centerline Height (in) - 2.6875 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - SINTERED BRONZE SLEEVE BRG
Distance Between Bolt Holes (in) - 7.5 in
Insert - 3239T1
Lubrication Type - SELF LUBRICATING SLEEVE
Weight (kg) - 5.71072328
