Description

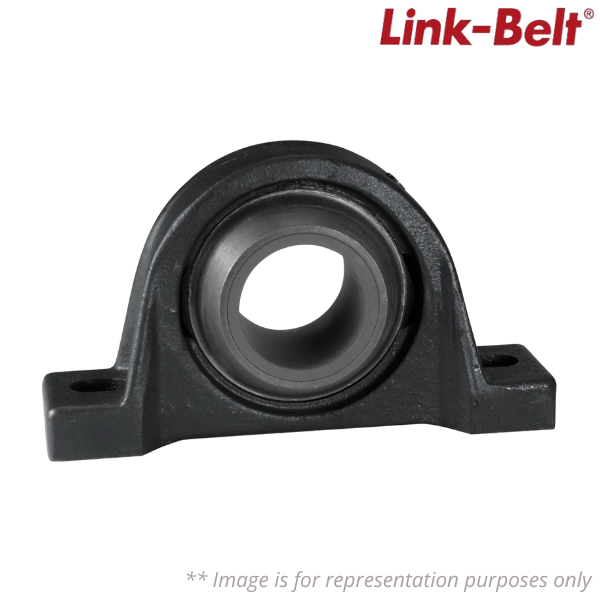

Brand - Link-Belt
Item Number - 3231PT1 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327199951
Material - 10420653
Model - 3200P
Bore Size (in) - 1 15/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Sleeve Material - Porous Sintered Bronze Oil Impregnated
Base to Centerline Height (in) - 2 1/4 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - SINTERED BRONZE SLEEVE BRG
Bore Length (in) - 2 1/4 in
Distance Between Bolt Holes (in) - 6 3/16 in
Distance from Bearing Centerline to Cap Face (in) - 1 25/32 in
Distance from Bearing Centerline to Inner Ring Short Hub Face (in) - 1 1/8 in
