32317 AV NILOS-RING

Brand - NILOS-RING
Item Number - 32317 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

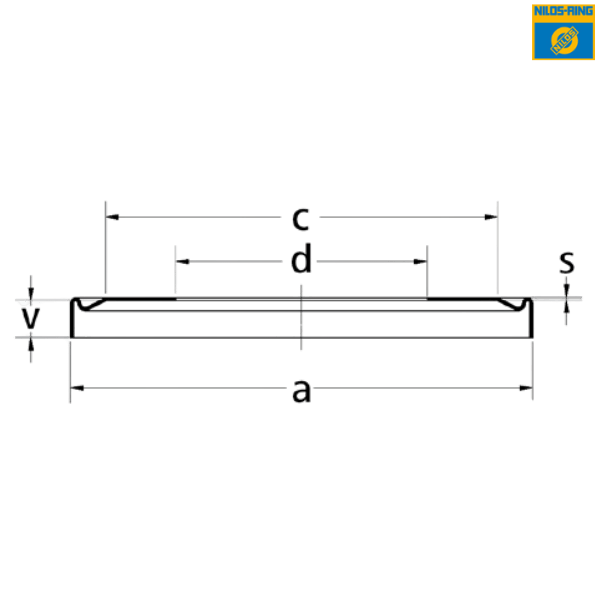

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 175 mm
Dimension (c) - 140 mm
Inner Diameter (d) - 85 mm
Dimension (h) - 0.5 mm
Thickness (s) - 15.1 mm

Description of Compatible Bearing (323 Series) :
Bearing Part Number - 32317
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 85 mm
Outer Diameter (D) - 180 mm
Width (C) - 49 mm

♦ ♦ Images are for representation purposes only
