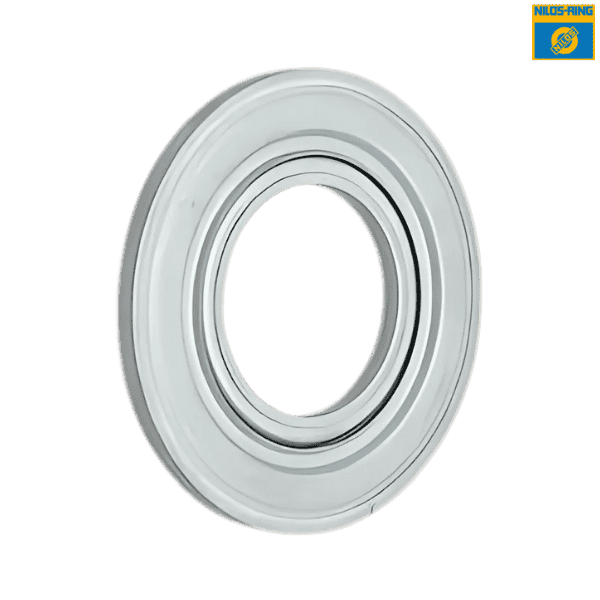

32317 AK NILOS-RING

Brand - NILOS-RING
Item Number - 32317 AK NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

Principal Dimensions & Load Ratings (Metric) :
Dimension (a1) - 175 mm
Outer Diameter (a2) - 183 mm
Dimension (c) - 140 mm
Inner Diameter (d) - 85 mm
Dimension (w*) - 105 mm
Width (h) - 5 mm
Dimension (s1) - 0.5 mm
Dimension (s2) - 0.5 mm
Dimension (G) - 184 mm
Dimension (g) - 181 mm
Dimension (t) - 64.5 mm

Description of Compatible Bearing (323 Series) :
Bearing Part Number - 32317
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 85 mm
Outer Diameter (D) - 180 mm
Width (C) - 49 mm

Other salient points to be noted :
* Locking nipples of NILOS-RINGS AK have a diameter of 4 mm at the bottom and a height of 1.5 mm

♦ ♦ Images are for representation purposes only
