32314 AV NILOS-RING

Brand - NILOS-RING
Item Number - 32314 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

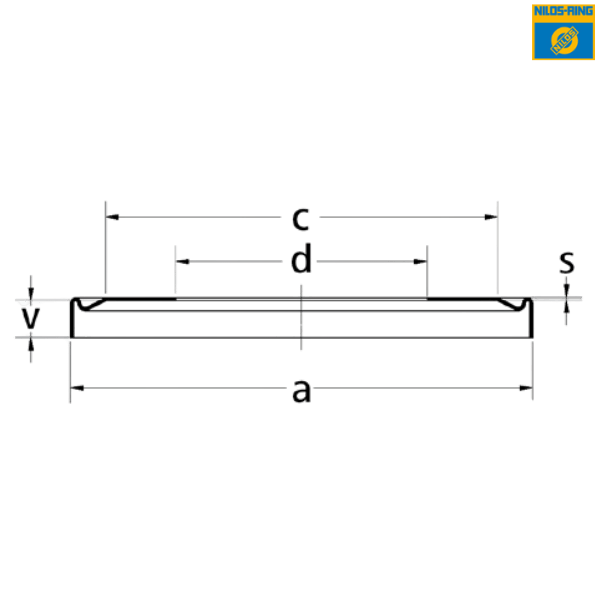

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 146 mm
Dimension (c) - 124 mm
Inner Diameter (d) - 70 mm
Dimension (h) - 0.5 mm
Thickness (s) - 12.6 mm

Description of Compatible Bearing (323 Series) :
Bearing Part Number - 32314
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 150 mm
Width (C) - 42 mm
