32310 AV NILOS-RING

Brand - NILOS-RING
Item Number - 32310 AV NILOS-RING
Category - NILOS-RING for Single Row Tapered Roller Bearing

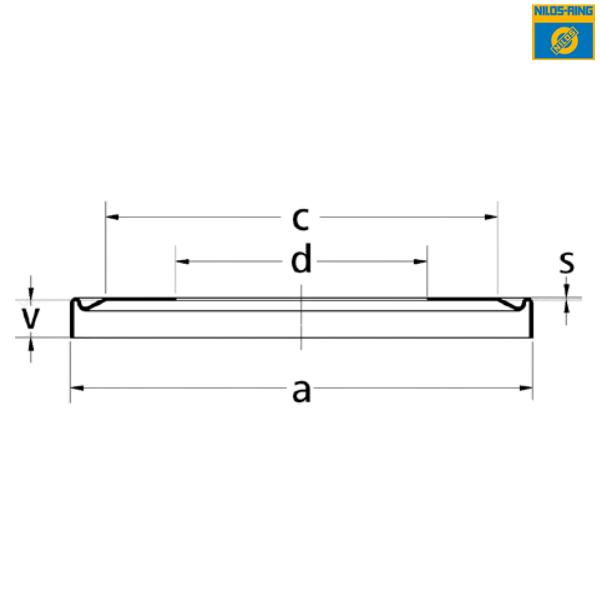

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter (a) - 106.5 mm
Dimension (c) - 85 mm
Inner Diameter (d) - 50 mm
Dimension (h) - 0.5 mm
Thickness (s) - 9.6 mm

Description of Compatible Bearing (323 Series) :
Bearing Part Number - 32310
Bearing Type - Single Row Tapered Roller Bearing
Inner Diameter (d) - 50 mm
Outer Diameter (D) - 110 mm
Width (C) - 33 mm

♦ ♦ Images are for representation purposes only
