Description
Brand - ZEN
Item Number - 32309 ZEN
Category - Tapered Roller Bearings
Inner Roller Bearing (d) mm - 45
Outer Diameter (D) mm - 100
T (mm) - 38.25
Width (B) mm - 36
C (mm) - 30
d1 (mm) - 71.1
r1 (mm) - 2
r2 (mm) - 2
r3 (mm) - 1.5
r4 (mm) - 1.5
Weight (kg) - 1.42
Dynamic Laod Rating (N) - 146300
Static Load Rating (N) - 183350
Limiting Speed - 6935
Outer Ring Material - AISI52100
Inner Ring Material - AISI52101
Rollers Material - AISI52102
Cage Material - #10 / 08F

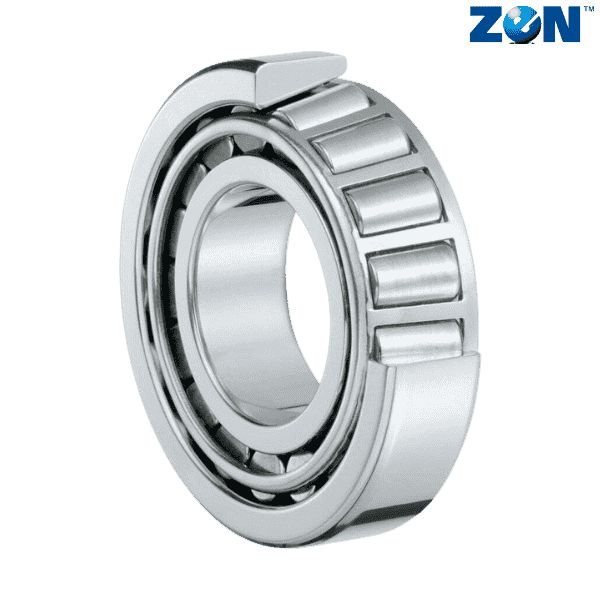

** Images are for representation purposes only
