Description

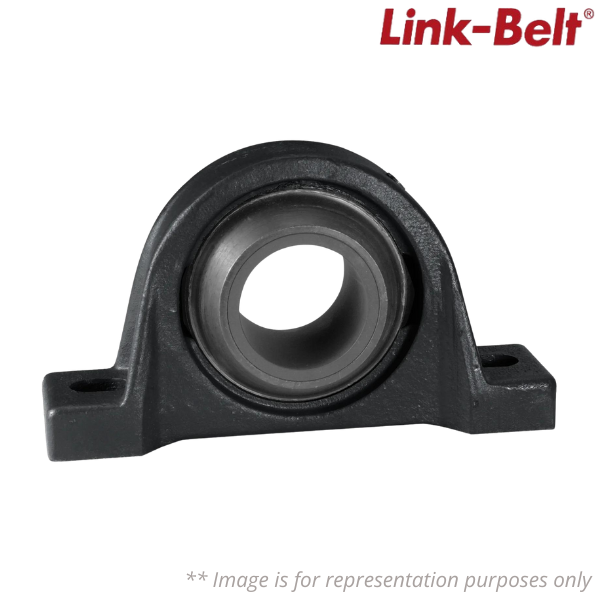

Brand - Link-Belt
Item Number - 3224PT1 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327199722
Material - 10435990
Model - 3200P
Bore Size (in) - 1 1/2 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt
Sleeve Material - Porous Sintered Bronze Oil Impregnated
Base to Centerline Height (in) - 2 in
Bearing Brand - LINK-BELT FLEX BLOCK SLEEVE
Bearing Type - SINTERED BRONZE SLEEVE BRG
Bore Length (in) - 2 1/8 in
Distance Between Bolt Holes (in) - 5 3/8 in
Distance from Bearing Centerline to Cap Face (in) - 1 41/64 in
Distance from Bearing Centerline to Inner Ring Short Hub Face (in) - 1 1/16 in
